Tron AIS-SART with bulkhead bracket
Part Number: 85037

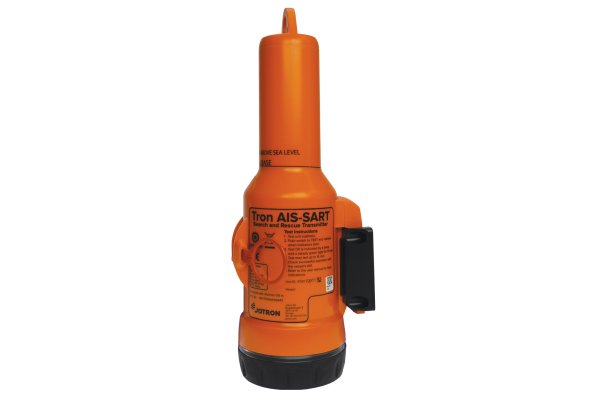

The unique and innovative feature of the Tron AIS-SART is the combination of its physical size and technical capability. The housing of the Tron AIS-SART is identical to Jotron’s radar-SART, type Tron SART20, – that is a total height of 251 mm and a weight of only 450g. Technically, the Tron AIS-SART is based on the following principals; the unit will be programmed from the manufacturer with a unique ID code and receives its position via an internal GPS antenna. This data is combined and transmitted using the international AIS channels (AIS A and AIS B) in the maritime VHF band.
Tron AIS-SART GMDSS search and rescue transmitter is “Wheel Marked” in accordance with European Council Directive 96/98/EC with latest Commission Directive 2011/75/EU (7th amendment).
Tron AIS-SART and Tron SART20 can both be used as “search and rescue locating devices” according to IMO SOLAS Amendment in Resolution MSC.256(84) giving the ship owner freedom to choose either product as required by SOLAS Chapter III, Regulation 2.2.
- Tron AIS-SART gives the exact location, with GPS precision
- Position update – every minute
- Unique AIS technology contribute to a more effective and less time consuming SAR operation, due to superior position accuracy
- The AIS-SART is detected on both AIS class A and B and AIS receivers
- Small and compact design

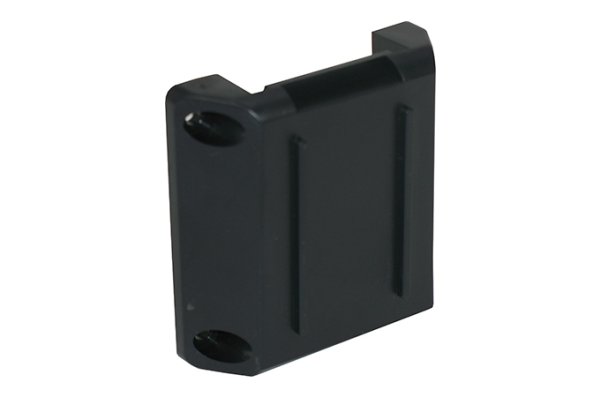

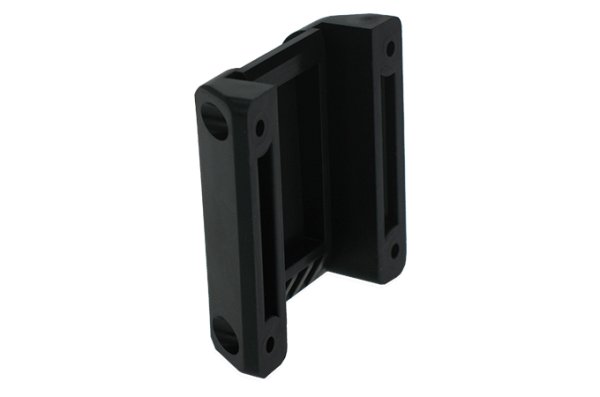

- Tron AIS-SART uses the same accessories as the Tron SART20 (bulkhead bracket, pole, life-boat bracket and neoprene protection bag)
- 5 year warranty
Documentation type
Date
Type
Name
Size
Download
30.05.22
Certificate
CCS Tron AIS-SART
260 KB
19.01.18
Certificate
FFC Tron AIS-SART
250 KB
24.05.23
Certificate
MED-B Tron AIS-SART
324 KB
13.12.23
Certificate
MED-D Tron 40VDR AIS
300 KB
01.01.23
Certificate
MER-B Tron AIS-SART
317 KB
15.10.24
Certificate
MER-D Tron 40VDR AIS
273 KB
19.02.24
Certificate
USCG Tron AIS-SART
182 KB
14.04.23
Dangerous goods
PSI Tron AIS-SART
213 KB
14.04.23
Dangerous goods
PSI Tron AIS-SART battery
213 KB
24.02.20
Dangerous goods
UN 38.3 TSR AIS-SART and Spare Battery
662 KB
22.10.24
Declaration
Declaration of conformity Tron AIS-SART
163 KB
19.01.18
Declaration
Faroese Maritime Authority Tron AIS-SART
432 KB
25.07.23
Declaration
Inventory of hazardous material Tron AIS-SART
217 KB
19.01.18
Declaration
Norwegian Maritime Directorate Tron AIS-SART
96 KB
18.10.21
Disposal
TB11-2021 Disassemble, disconnect and recycle
346 KB
27.02.25
Manual
User manual Tron AIS-SART
2578 KB
10.12.24
Marketing material
Product brochure Tron AIS-SART
576 KB
17.11.18
Product safety information
SAFT Battery information sheet
622 KB
17.01.25
Technical bulletin
TB05-2024-1 Battery lifetime on GMDSS products
245 KB
30.10.17
Technical bulletin
TB07-2009 AIS-SART Test (in Norwegian)
586 KB
30.10.17
Technical bulletin
TB07-2009 AIS-SART Test rev 140311
560 KB
