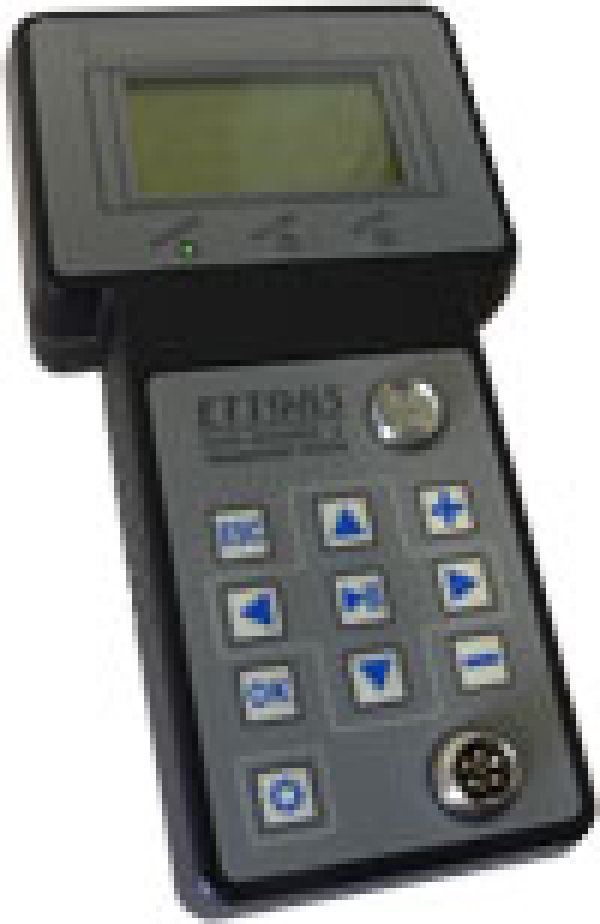

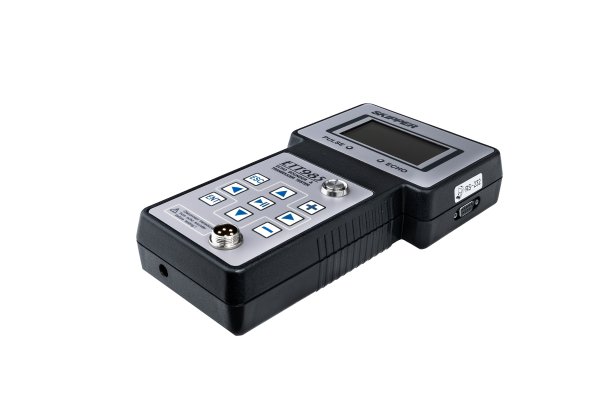

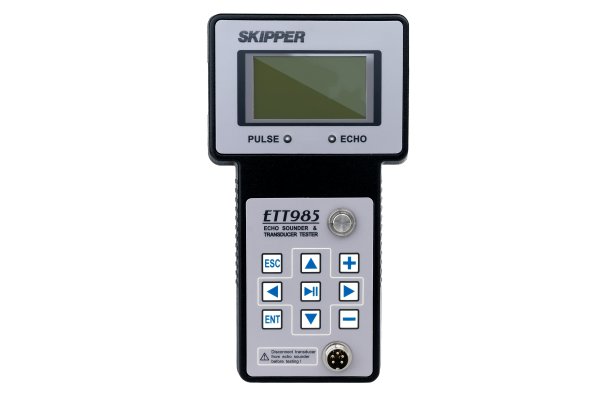

SKIPPER ETT985 tester for echo sounders

Part Number: ETT985-SASW

SKIPPER ETT985 is a simple to use, reliable and accurate tester for most echo sounders. Pre-programmed with factory tests for transducers, echo sounders and NMEA ports. This unit can be used in a stand-alone mode, or using a connection to a PC to give accurate results. It may even print/save a status report. The ETT985 eliminates uncertainty of whether a failure is in the transducer or in the echo sounder.

Read product description

Where to buy

Features

Transducer tester
Echo Sounder tester
NMEA tester

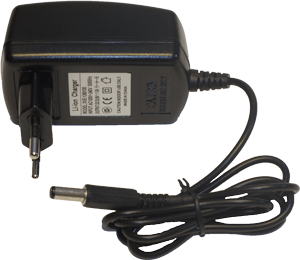

Built-in rechargeable battery

Product:	Transducer tester
Part number:	ETT985-SASW
To be used with:	All SKIPPER echo sounders All SKIPPER transducers External echo sounders External transducers
Features:	Tester for transducer frequencies from 10 kHz to 1 MHz Impedance, resistance and phase Detection of resonant point and impedance at resonance Pre-programmed integrity tests for SKIPPER transducers (and others) Graph of impedance, conductance, phase and susceptance Detection of resonance, anti-resonance, bandwidth and factory limit check Save to .xls format and/or print out for service reports Add your own transducer checks and limits (saved in tester for later use)
Simulator:	Detect and measure pulses, frequency, strength, Vpp, width and period Generate return pulses with fixed or tracking format, at depth up to 999.9 m Simulate fish in the water column Add your own echo sounder values and checks Ceck results against factory settings or preset default values

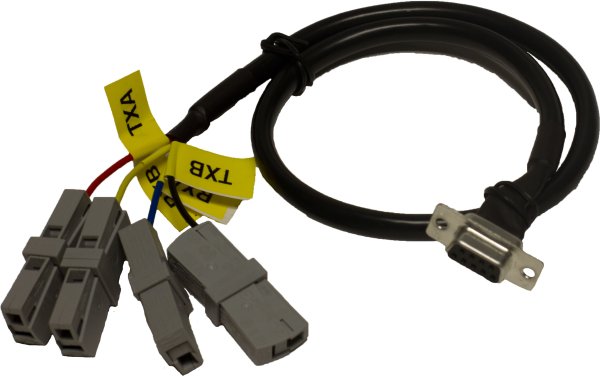

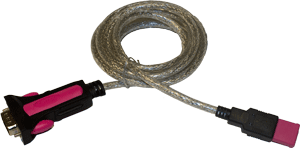

NMEA tester:	Monitor NMEA lines, loop back signals from devices, send standard formats for GPS, gyro, echo sounders, speed logs etc. Use the unit as a NMEA to RS232 converter or to USB with included converter Insert your own NMEA parameters (can be saved)

Documentation type

Date

Type

Name

Size

Download

09.07.26

Manual

Manual DM-T001-1424A ETT985 Echo sounder and transducer tester (2017-02-16)

1431 KB

08.07.26

Marketing material

Product brochure ETT985 (24012013)

798 KB

09.07.26

Marketing material

Product brochure ETT985 Navigation Echo Sounder (25012013)

868 KB
