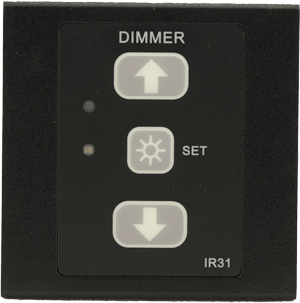

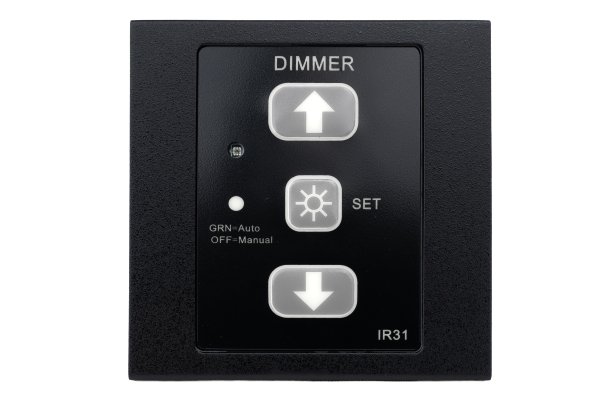

SKIPPER IR31 NMEA Remote Dimmer
Part Number: IR31DIM-SA
IR31DIM is
a new NMEA and pulse dimmer unit that can be used to give a central dimming
command (DDC). Either as a 4 level theme command, or as a 10 level command with
theme and brightness. In addition the switch has an internal or external
light sensor, and can be made to dim automatically. If you have special
dimming commands these can be programmed into the system using the SKIPPER
service software, and this can be sent out of 1 of the 2 outputs. Dimming
levels can also be pre-programmed or adjusted using the dimmer buttons. The
system has 2 inputs and 2 outputs and the dimming commands can be multiplexed
on to the incoming NMEA commands.

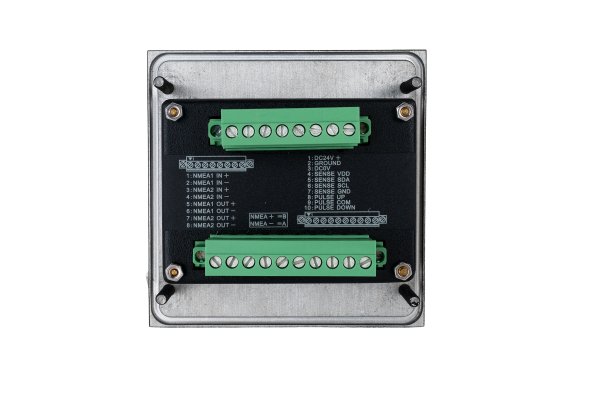

Specifications: Part Number: IR31DIM-SA To be used with: All SKIPPER products External products accepting NMEA dimming message Input Voltage: DC: 18-32 V Interface unit IP rating: IP56 on front IP 22 otherwise Approvals: IEC60945 Inputs: 2xNMEA0183 (IEC 61162-1) 1xexternal light sensor Outputs: 2xNMEA0183 (IEC 61162-1) 1xrelay (up/down) Mounting format: 96 mm format (cutout 63 mm x 84 mm) Screw holes: 70 mm x 82 mm, d4 mm Weight: 280 g Options: External light sensor Service: Available in most major harbours, world-wide through extensive dealer network Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents
Features
- 2 channel NMEA Dimmer
- Pulse Dimmer
- Auto Light Detection
- DDC or proprietary message
- Designed for all SKIPPER products
