SKIPPER NE108-SA expander
Part Number: NE108-SA

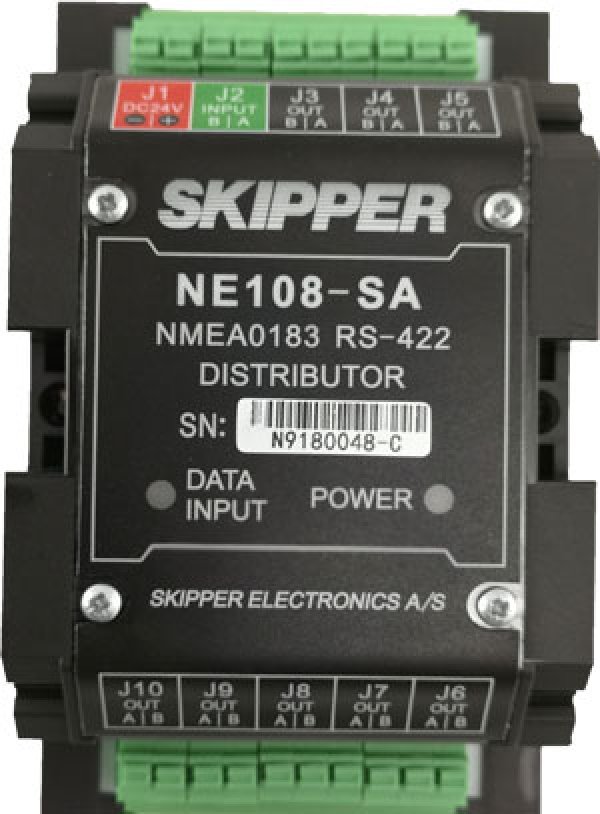

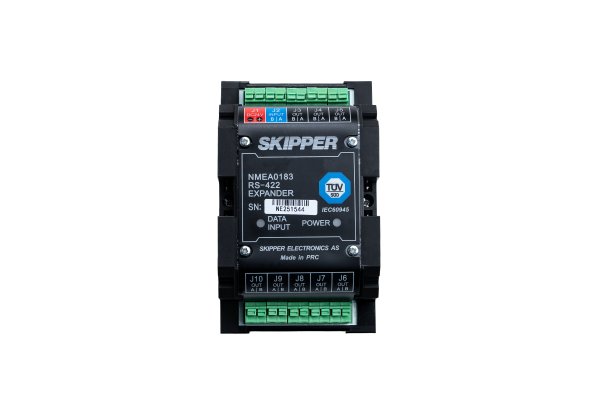

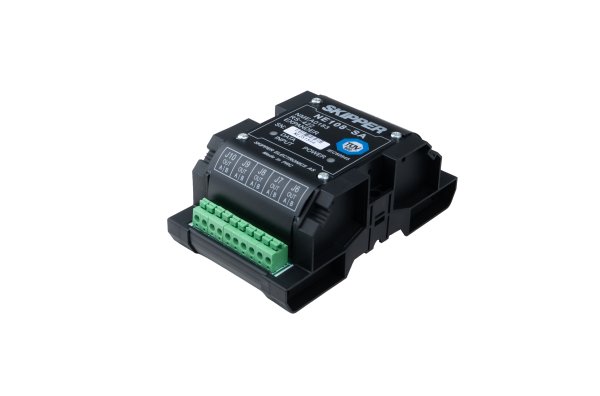

The SKIPPER NE108-SA is a galvanic isolated NMEA0183 expander with 1 input and 8 outputs.
Features
- NMEA0183 Expander
- 1 input
- 8 outputs
- Approved according to IEC 60945
- Mounting for 35 mm DIN-Rail
| Product: | NMEA0183 Expander |
| Part number: | NE108-SA |
| Features: |
|
| Input voltage: | 24 VDC |
| Dimensions: | Width: 77 mm, Length: 128 mm, Depth: 50 mm |
| Approvals: | IEC60945 |
| Mounting format: | For 35 mm DIN-RAil mounting |
| Weight: | 700 g |
| Service: | Available in most major harbours, world-wide through extensive dealer network |
Documentation type
Date
Type
Name
Size
Download
08.07.26
Data sheet
Datasheet NE108-SA-00 NMEA Expander
296 KB
