SKIPPER TS-104 Transducer Selector
Part Number: SY-TS-104

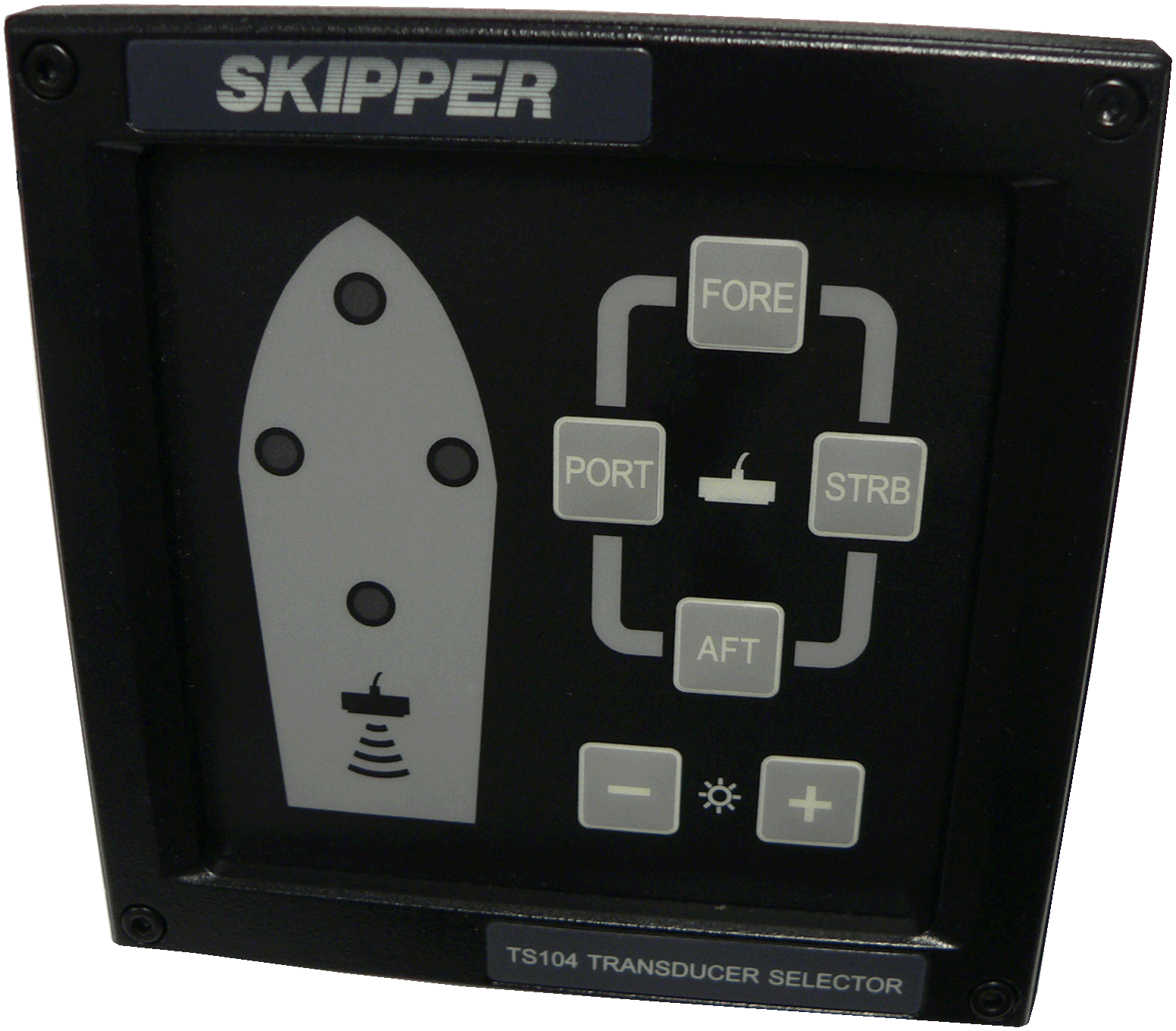

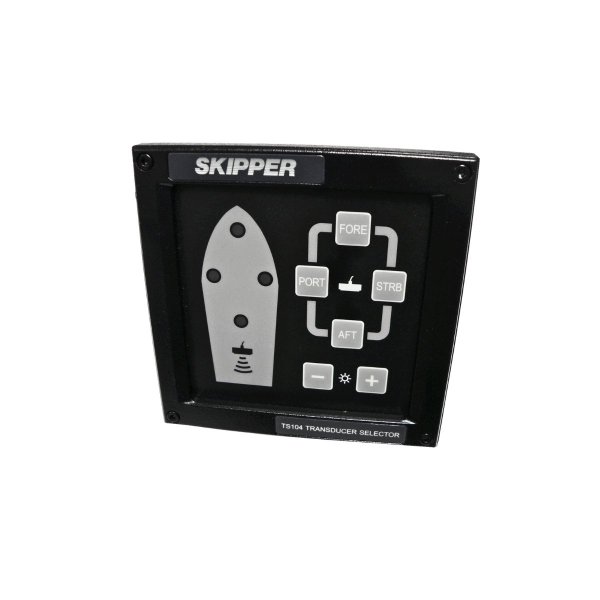

SKIPPER TS-104 is a 4 to 1 transducer switcher allowing the user to select which transducer is to be shown on a single channel Echo Sounder. The unit allows up to 4 transducers of the same frequency to be switched onto a single channel.
Specifications: Part Number: SY-TS-104 Power supply: 18-36 VDC Power consumption: 30 W at 24 VDC Output: 1 Echosounder Input: 4 transducers of same frequency Remote dimming input (pulse) Cut-out dimensions: 124 x 124 mm Bracket or panel mounting. Brackets are included. Depth: 59 mm Weight: 3 kgs included the interface unit IP protection: IP56 - Selector unit IP23 - Inerface unit Service: Available in most major harbours, world-wide through extensive dealer network Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents
Features
- Press button Channel selection
- LED-Display of selected channel
- Switching of multiple single frequency transducers
- For use on larger vessels, platforms etc.
- Two overlays as standard - Offshore Rig and Vessel
