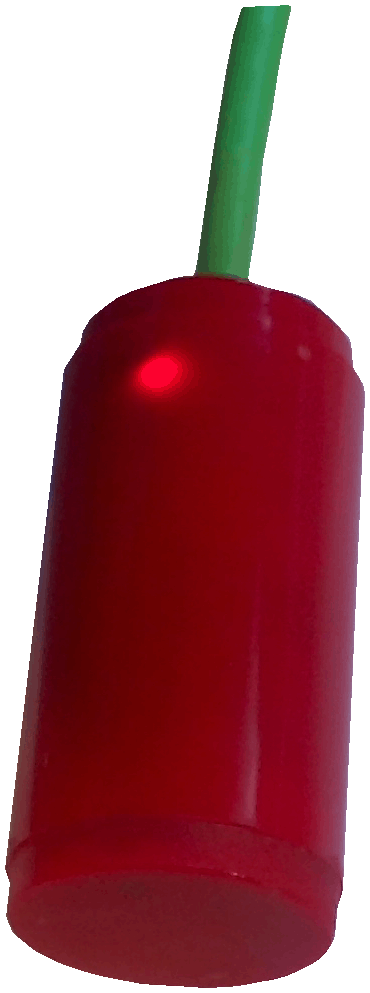

SKIPPER DL1 single axis Doppler sensor
Part Number: Multiple options
The SKIPPER DL1 sensor is a single axis Doppler sensor designed for the SKIPPER DL1 speed log system. It provides accurate speed through water (STW) measurements, supporting reliable navigation and vessel performance monitoring.
Features
- Only to be used with SKIPPER DL1 and DL1 Multi systems
- Single axis speed through water (STW)
- 60 mm in diameter
- Cable length 40 m
| Product: | Sensor for SKIPPER DL1 speed log system |
| Part number: | Multiple options |
| To be used with: | SKIPPER DL1 |
| Range: | STW only |
| Material: | Polyurithane |
| Weight: | 7 kgs |
| Cable length: | 40 m |
| Diameter: | 100 mm |
| Classification: |
|
Available in these variants:

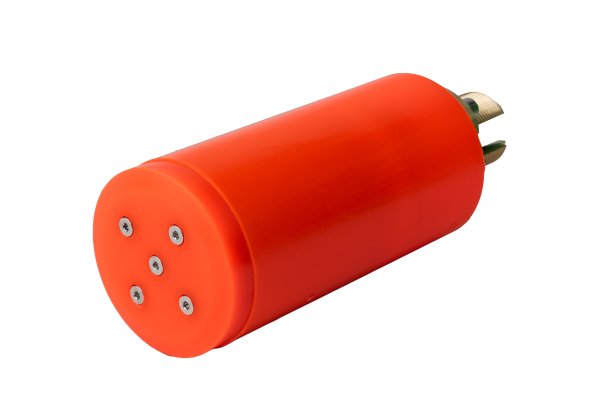

| DL1SG-SA | for mounting in:
|
| DL1ST-SA | for mounting in ETNSTCL Steel tank |
| DL1STA-SA | for mounting in ETNALC Aluminium tank |
| DL1SDB-SA | for mounting in:
|
| DL1SN-SA | Retrofit to Simrad NL-log |
| DL1SS-SA | Retrofit to Sagem |
| DL1SV-SA | Retrofit to Naviknot 5005 |
| DL1SX-SD | Retrofit to PCSV60 |
Documentation type
Date
Type
Name
Size
Download
29.06.26
Guide
Guide Speed Log Retrofit Setup and Options 144
308 KB
29.06.26
Guide
Guide Speed Log Setup and Options 144
521 KB
01.07.26
Manual
Manual (OpIn) DM-M001-SA-0702 Compact EML-DL1 (2024-01-22) web
2869 KB
01.07.26
Manual
Manual DM-M004-SA 1.61 DL1-Multi Web
4599 KB
07.07.26
Manual
Manual DM-M005-SA DL1-Multi (2023-03-17)
5609 KB
16.07.26
Manual
Manual DM-M009-1812 SD21 (02.07.2019)
3146 KB
01.07.26
Marketing material
Product brochure DL1-Multi (2019-11-12)
1069 KB
