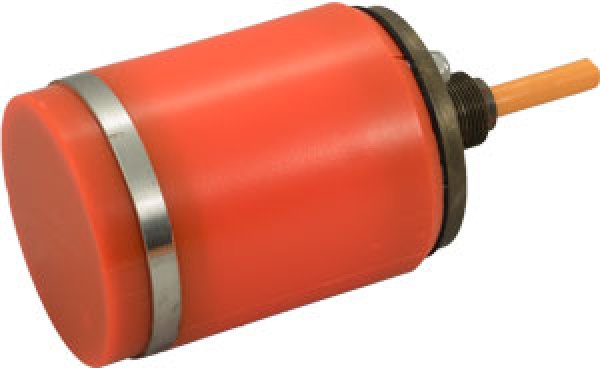

SKIPPER DL2 Dual Axis Doppler Sensor
Part Number: DL2S
SKIPPER DL2 sensor is designed for the SKIPPER DL2 Dual Axis Doppler Speed Log System. It provides Speed Through Water (STW) and Speed Over Ground (SOG) in two or three axis (Doppler).
Specifications: Product: Sensor for SKIPPER DL2 To be used with: SKIPPER DL2 Part Numbers: DL2SG-SA Sensor for SB-100-SB and DB-100-SB DL2ST-SA Sensor for ETNST Steel Tank DL2STA-SA Sensor for ETNALC Aluminium Tank DL2SDR-SA Sensor for Retrofit to Atlas Dolog 2X Tank DL2SW-SA Sensor for Retrofit to Sperry SRD 421/500 DL2SE-SA Sensor for Retrofit to SKIPPER DL850 540 kHz ETNSLB DL2SC-SA Log sensor DL2 SKIPPER retrofit SAL860 (T2) DL2SF-SA DL2 sensor for DS-630 in DS-661 for Furuno DS-60 Range: SOG down to 150-200 m depending on conditions Material: Polyurithane Weight: 9 kgs Mounting options: Steel Tank Aluminium tank 100 mm Sea Valve for single bottom 100 mm Sea Valve for double bottom Retrofit in Sperry SRD 421/500 Retrofit in Atlas Dolog 2x Retrofit in SKIPPER ETNSLB Retrofit for SAL860 and T2 Classification: IMO Wheelmarked CCS on request RMRS on request MED-B Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents
Features
- Only to be used with SKIPPER DL2 system
- Dual frequency operation
- 100 mm in Diameter
- Cable length 40 m
