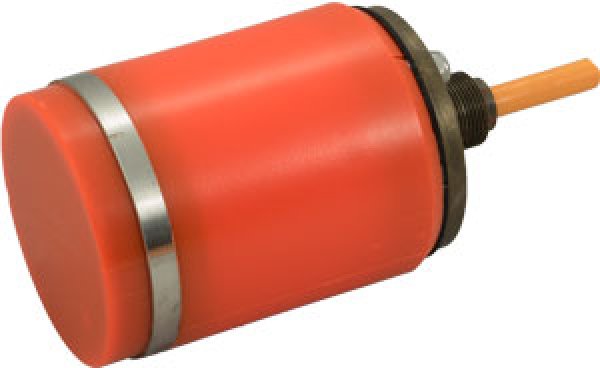

SKIPPER DL21 Dual Axis Doppler Sensor
Part Number: DL21S
SKIPPER DL21 sensor is designed for the SKIPPER DL21 Dual Axis Doppler Speed Log System. It provides Speed Through Water (STW) and Speed Over Ground (SOG) in two or three axis (Doppler). In addition it provides Speed Through Water (STW) in one axis.
Specifications: Product: Sensor for SKIPPER DL21 To be used with: SKIPPER DL21 Part Numbers: DL21SG-SA Sensor for SB-100-SB and DB-100-SB DL21ST-SA Sensor for ETNST Steel Tank DL21STA-SA Sensor for ETNALC Aluminium Tank DL21SW-SA Sensor for Retrofit to Sperry SRD 421/500 DL21SE-SA Sensor for Retrofit to SKIPPER DL850 540 kHz ETNSLB Range: SOG down to 150-200 m depending on conditions Material: Polyurithane Weight: 10 kgs Mounting options: Steel Tank Aluminium tank 100 mm Sea Valve for single bottom 100 mm Sea Valve for double bottom Retrofit in Sperry SRD 421/500 Retrofit in SKIPPER ETNSLB Classification: IMO Wheelmarked CCS on request RMRS on request MED-B Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents
Features
- Only to be used with SKIPPER DL21 system
- Dual frequency operation
- Two separate sensors in one sensor (DL1+DL2)
- 100 mm in Diameter
- Cable length 40 m
