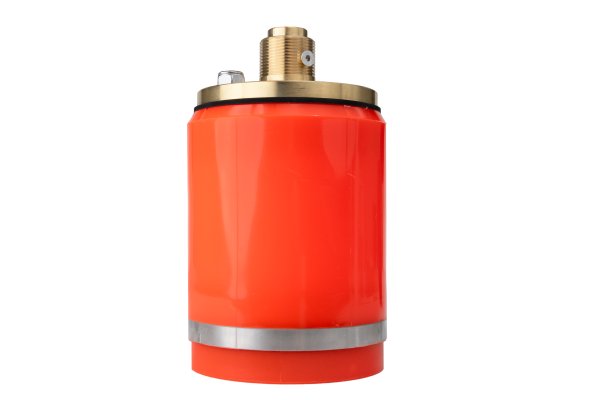

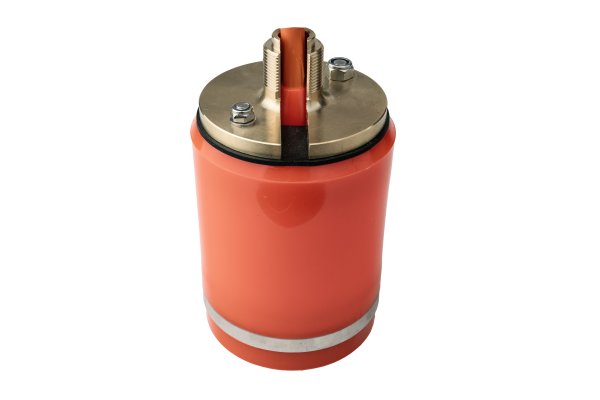

SKIPPER dual axis Doppler sensor for retrofit to Sperry SRD 421/500
Part Number: DL21SW-SA
SKIPPER DL21 sensor is designed for the SKIPPER DL21 dual axis Doppler speed log system. It provides speed through water (STW) and speed over ground (SOG) in two or three axis (Doppler). In addition it provides speed through water (STW) in one axis. DL21SW-SA sensor for retrofit to Sperry SRD 421/500.
Features
- Only to be used with SKIPPER DL21 system
- Dual frequency operation
- Two separate sensors in one sensor (DL1+DL2)
- 100 mm in diameter
- Cable length 40 m
| Product: | Sensor for SKIPPER DL21 speed log system |
| Part number: | DL21SW-SA |
| To be used with: | SKIPPER DL21 |
| Mounting options: | Retrofit to Sperry SRD 421/500 |
| Range: | SOG down to 150-200 m depending on conditions |
| Material: | Polyurithane |
| Weight: | 10 kgs |
| Cable length: | 40 m |
| Diameter: | 100 mm |
| Classification: |
|
Documentation type
Date
Type
Name
Size
Download
29.06.26
Guide
Guide Speed Log Retrofit Setup and Options 144
308 KB
