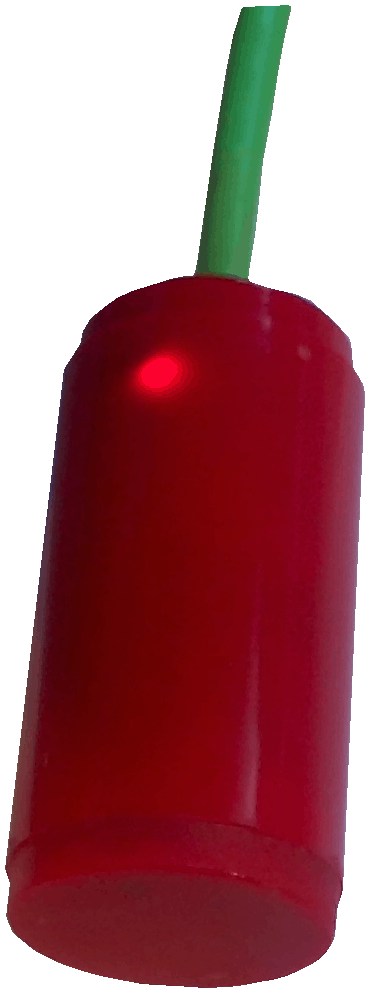

SKIPPER EML224 Single/Dual Axis Electromagnetic Sensor
Part Number: EML224
SKIPPER EML224 sensor is designed for the SKIPPER EML224 Single or Dual Axis Electromagnetic Speed Log System. It provides Speed Through Water (STW) in one or two axis.
Specifications: Product: Sensor for SKIPPER EML224 To be used with: SKIPPER EML224 Graphic SKIPPER EML224 Compact Single Axis SKIPPER EML224 Compact Dual Axis Part Numbers: EML224SG-SD Sensor for SB-60-SA and DB-60-SA EML224ST-SD Sensor for ETNSTCL Steel Tank EML224STA-SD Sensor for ETNALC Aluminium Tank EML224SDB-SD Sensor for SB-100-SB and DB-100-SB EML224SN-SD Sensor for Retrofit to Simrad NL-Log EML224SS-SD Sensor for Retrofit to Sagem EML224SV-SD Sensor for Retrofit to Naviknot 5005 Range: STW only Material: Polyurithane Weight: 7 kgs Mounting options: 60 mm Sea Valve for single bottom 60 mm Sea Valve for double bottom Steel Tank Aluminium tank 100 mm Sea Valve for single bottom 100 mm Sea Valve for double bottom Retrofit in Simrad NL-Log Retrofit in Sagem Retrofit in Naviknot 5005 Classification: IMO Wheelmarked CCS on request RMRS on request MED-B Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents
Features
- Only to be used with SKIPPER EML224 Compact and Graphic
- Single/Dual Axis Speed Through Water (STW)
- 60 mm in Diameter
- Cable length 40 m
