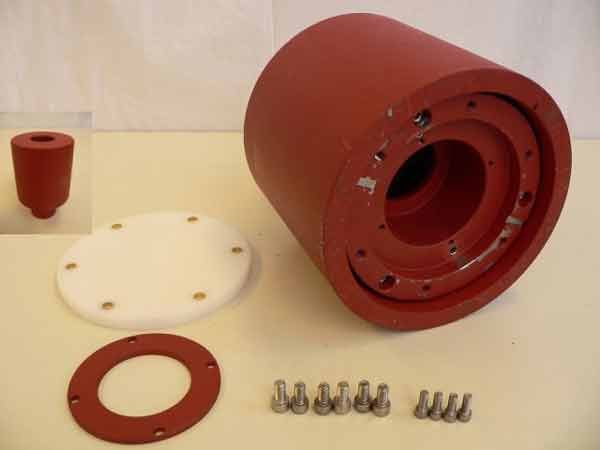

SKIPPER ETNSTCI ice protected combo tank

Part Number: ETNSTCI

The ETNSTCI is an ice protected combo steel tank. It is designed for SKIPPER transducers, but could also be used for other sensors with special adaptors.

Read product description

Features

Ice protected combo tank
DNV approval as standard
CCS available on request
Other approvals on request

Product:	Ice protected combo steel tank
Part number:	ETNSTCI
Opening diameter:	100 mm
Hull type:	All steel hulls
Tank material:	Steel
Flange material:	N/A
Approval with part number:	ETNSTCI Standard with DNV approval ETNSTCI-ABS With ABS approval ETNSTCI-BV With BV approval ETNSTCI-LR With LR approval
Mandatory accessories:	A-PACKING Special packing materials
Weight:	35 kgs
Designed for:	ETN050BEL 50 kHz transducer with 25 m cable ETN050BELX 50 kHz transducer with 40 m cable ETN200FS 200kHz transducer with 25 m cable ETN200FSX 200kHz transducer with 40 m cable
Service:	Available in most major harbours, world-wide through extensive dealer network

Documentation type

Date

Type

Name

Size

Download

20.08.26

Technical

Data bulletin_SDB_TANK_01 Tool for packing nipple 20100608

555 KB

20.08.26

Technical

Data bulletin_Tanks - Illustrated parts list 20100114

1313 KB

Documentation for the maritime navigation range is currently being updated. Contact us if you need a document that is not listed above.
