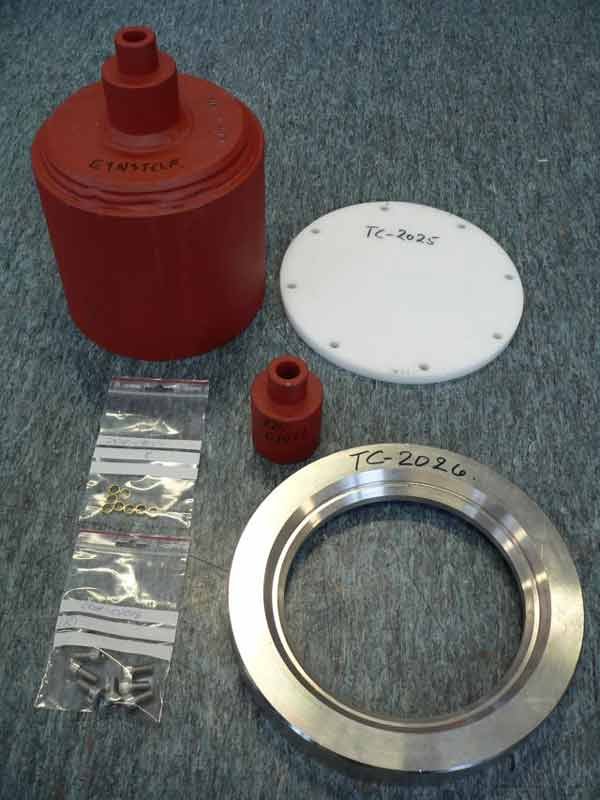

SKIPPER ETNSTCILF ice protected low frequency combo tank

Part Number: ETNSTCILF

The ETNSTCILF is an ice protected low frequency combo steel tank. It is designed for SKIPPER transducers of low frequency (24 and 38 kHz), but could also be used for other sensors with special adaptors.

Read product description

Features

Ice protected combo steel tank
DNV approval as standard
Other approvals on request

Product:	Ice protected combo steel tank
Part number:	ETNSTCILF
Opening diameter:	100 mm
Hull type:	All steel hulls
Tank material:	Steel
Flange material:	N/A
Approval with part number:	ETNSTCI Standard with DNV approval ETNSTCI-ABS With ABS approval ETNSTCI-BV With BV approval ETNSTCI-LR With LR approval
Mandatory accessories:	A-PACKING Special packing materials
Weight:	35 kgs
Designed for:	ETN050BEL 50 kHz transducer with 25 m cable ETN050BELX 50 kHz transducer with 40 m cable ETN200FS 200kHz transducer with 25 m cable ETN200FSX 200kHz transducer with 40 m cable
Service:	Available in most major harbours, world-wide through extensive dealer network

Documentation type

Date

Type

Name

Size

Download

29.06.26

Manual

Manual DM-BETNSTCI-LF ComboTank Ice 2021-01-29

2172 KB

36ea5bc6c5414ee3d34be7edb53e3763 (1)
