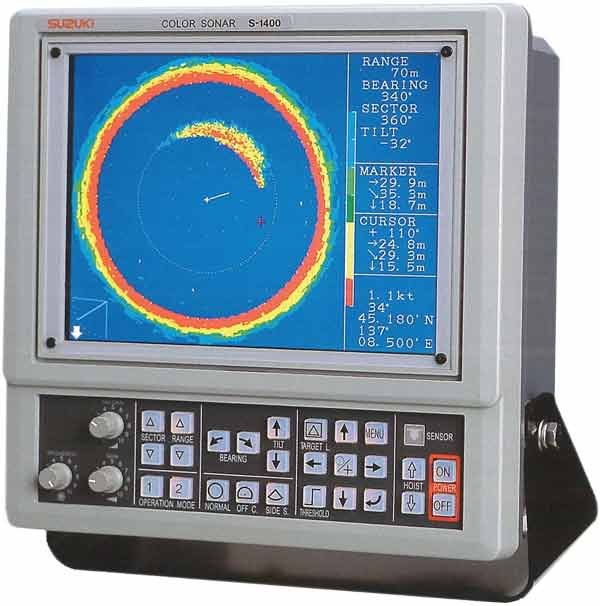

Suzuki S-1400 Sonar

Specifications: Part number: FS1400N-220 10.4" Display (incl. installation material) ZDD-01160 Transducer shaft, joint pipe length 1240mm FS1400H-220 Hull unit, 220KHz, FS1400HU (incl. installation mat.) Trunk pipe is not delivered by SKIPPER - Yard supply. Power supply: DC: 20-30 V Power consumption: 70 W at 24 VDC Display: 10.4” TFT colour LCD (640 x 480 pixels) Weigth on display: 6 kgs included mounting bracket Weight on hull unit: 17 kgs without trunk pipe Display modes: Sonar mode Data display Off-center mode + data display Bottom scan mode + data display Range: 0-300 m Units: Meter Fathoms Feet Frequency: 220 kHz TX output power: 800 W Colour: 8 colours Colour palette Tilt angle: +/- 5° to - 90° at 1° step Stroke: 120-200 mm Raising/lowering time: 7 seconds Maximum vessel speed: 15 knots 10 knots when lowering/rising Output: Trigger signal Input: NMEA0183 Other functions: Operation mode (2 types) Off center Train correct Power reduction Pulse width Colour selection Gain control Dynamic range Noise reduction Stabilizer Threshold control Brightness adjustment Hoist sensor lamp Interference reduction Target lock TVG Auto retraction (option) Service: Available in most major harbours, world-wide through extensive dealer network Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents
