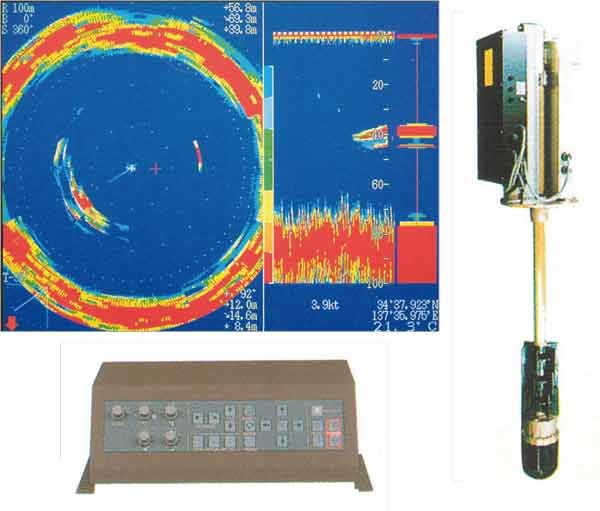

Suzuki S-1900 Sonar

Specifications: Part numbers: ZDD-01178 Transducer shaft, S-1900, joint pipe length 1681mm FS1900H Hull unit with joint pipe + sonar 180kHz + junction box FS1900KO Operator control box S-1900MBB Power supply: DC: 20-30 V Power consumption: 110 W at 24 VDC Display: Optional Weight on hull unit: 44 kgs Weight on control unit: 7 kgs Sonar type: Searchlight sonar Soundome stroke: 200-400 mm Stroke period: 10 sec (400 mm stroke 24 V) Raise and lower: Automatically related to power ON/OFF Range: 20-2000 m Power Output: 1.2 kW Tilt angle: +/- 5° to - 90° at 1° step Display mode: Sonar mode Of-center mode Bottom scan mode Sounder mode Split screen Historical display/compressed display Historical display/a-scope NAV display Screen notation: Range Range scale Tilt Tilt diagram Sector angle Bearing center angle Ring marker Interference reduction Navigation data Cross cursor Compass display Speed LAT/LON data Gain/TVG graph Colour scale Water temperature Scanning image Position of vessel VRM Depth External input: NMEA 0183 Remote controller Trigger signal External output: LAT/LON of target VGA Trigger signal Service: Available in most major harbours, world-wide through extensive dealer network Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents
