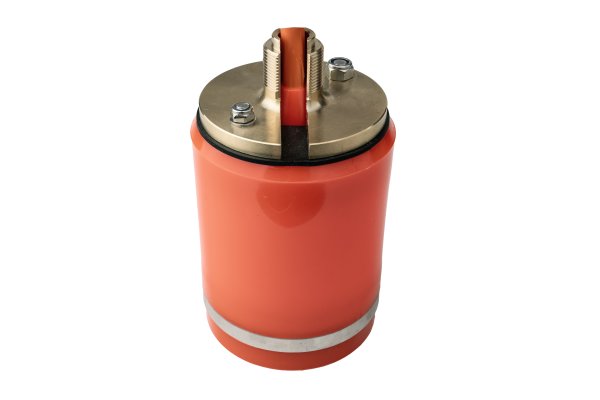

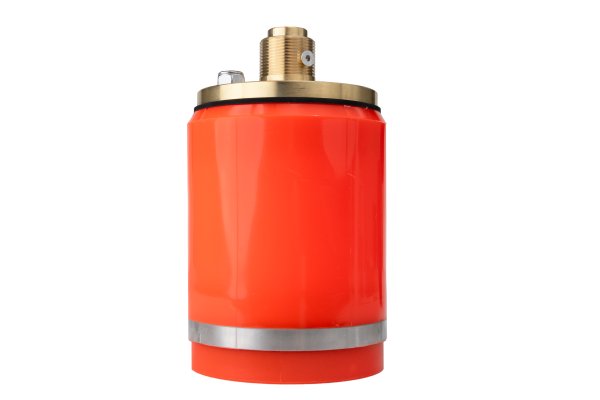

SKIPPER DL2 dual axis Doppler sensor
Part Number: Multiple options
SKIPPER DL2 sensor is designed for the SKIPPER DL2 dual axis Doppler speed log system. It provides speed through water (STW) and speed over ground (SOG) in two or three axis (Doppler).
Features
- Only to be used with SKIPPER DL2 system
- Dual frequency operation
- 100 mm in diameter
- Cable length 40 m
| Product: | Sensor for SKIPPER DL2 speed log system |
| Part number: | Multiple options |
| To be used with: | SKIPPER DL2 |
| Range: | SOG down to 150-200 m depending on conditions |
| Material: | Polyurithane |
| Weight: | 9 kgs |
| Cable length: | 40 m |
| Diameter: | 100 mm |
| Classification: |
|
Available in these variants:
| DL2SG-SA | for mounting in:
|
| DL2ST-SA | for mounting in ETNST Steel tank |
| DL2STA-SA | for mounting in ETNALC Aluminium tank |
| DL2SDR-SA | Retrofit to Atlas Dolog 2 X tank |
| DL2SW-SA | Retrofit to Sperry SRD 421/500 |
| DL2SE-SA | Retrofit to SKIPPER DL850 540 kHz ETNSLB |
| DL2SC-SA | Retrofit to SAL860 (T2) |
| DL2SF-SA | for DS-630 in DS-661 for Furuno DS-60 |
Documentation type
Date
Type
Name
Size
Download
29.06.26
Guide
Guide Speed Log Retrofit Setup and Options 144
308 KB
29.06.26
Guide
Guide Speed Log Setup and Options 144
521 KB
30.06.26
Manual
Manual DM-M003-SA-2602 DL2 (2026-01-07)
4336 KB
30.06.26
Manual
Manual DM-M010-2602 DL2 with CU-M001-SB (03-03-2026)
7555 KB
30.06.26
Marketing material
Product brochure DL2 (2023-09-19)
791 KB
07.07.26
Marketing material
Product brochure DL2_option (2018-05-25)
450 KB
