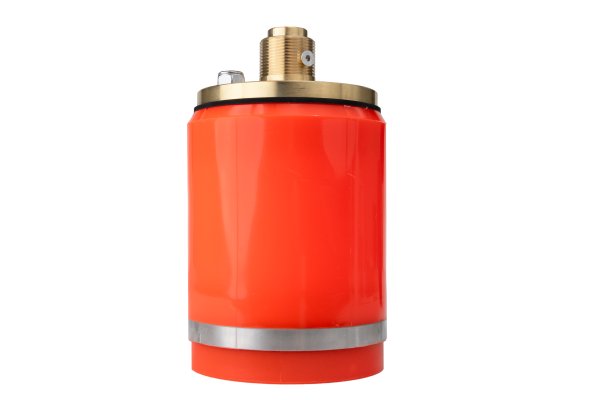

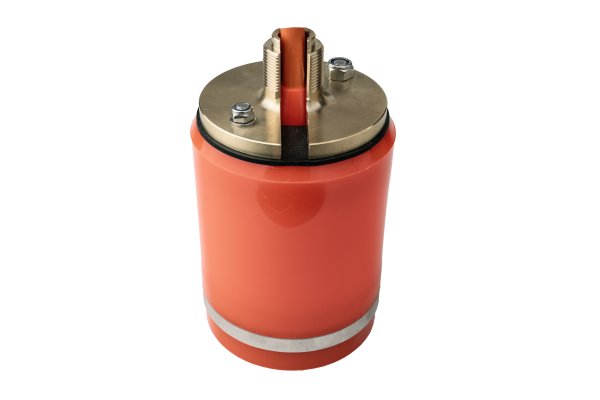

SKIPPER dual axis Doppler sensor for SB-100-SB and DB-100-SB
Part Number: DL21SG-SA
SKIPPER DL21 sensor is designed for the SKIPPER DL21 dual axis Doppler speed log system. It provides speed through water (STW) and speed over ground (SOG) in two or three axis (Doppler). In addition it provides speed through water (STW) in one axis. DL21SG-SA sensor for SB-100-SB and DB-100-SB.
Features
- Only to be used with SKIPPER DL21 system
- Dual frequency operation
- Two separate sensors in one sensor (DL1+DL2)
- 100 mm in diameter
- Cable length 40 m
| Product: | Sensor for SKIPPER DL21 speed log system |
| Part number: | DL21SG-SA |
| To be used with: | SKIPPER DL21 |
| Mounting options: | for mounting in:
|
| Range: | SOG down to 150-200 m depending on conditions |
| Material: | Polyurithane |
| Weight: | 10 kgs |
| Cable length: | 40 m |
| Diameter: | 100 mm |
| Classification: |
|
