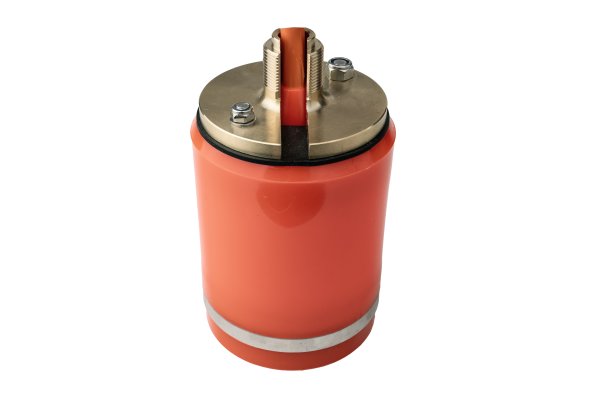

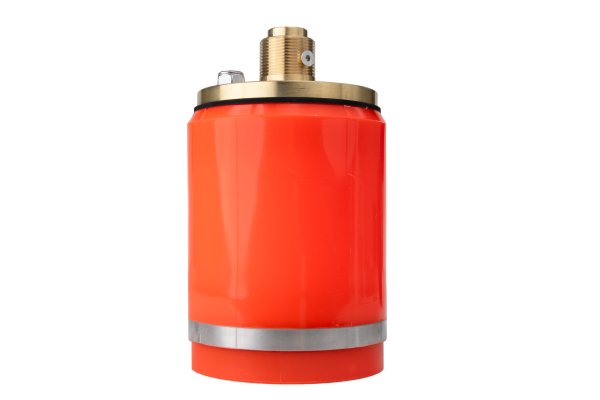

SKIPPER dual axis Doppler sensor for retrofit to Atlas Dolog 2 X tank
Part Number: DL2SDR-SA
SKIPPER DL2 sensor is designed for the SKIPPER DL2 dual axis Doppler speed log system. It provides speed through water (STW) and speed over ground (SOG) in two or three axis (Doppler). DL2SDR-SA sensor for retrofit to Atlas Dolog 2 X tank.
Features
- Only to be used with SKIPPER DL2 system
- Dual frequency operation
- 100 mm in diameter
- Cable length 40 m
| Product: | Sensor for SKIPPER DL2 speed log system |
| Part number: | DL2SDR-SA |
| To be used with: | SKIPPER DL2 |
| Mounting options: | Retrofit to Atlas Dolog 2 X tank |
| Range: | SOG down to 150-200 m depending on conditions |
| Material: | Polyurithane |
| Weight: | 9 kgs |
| Cable length: | 40 m |
| Diameter: | 100 mm |
| Classification: |
|
Documentation type
Date
Type
Name
Size
Download
29.06.26
Guide
Guide Speed Log Retrofit Setup and Options 144
308 KB
08.07.26
Manual
Manual DM-D102-02_DL2 Dolog replacement
2336 KB
16.07.26
Manual
Manual DM-D102-03 DL2 Dolog replacement for DL2SDR-SB-03
3235 KB
08.07.26
Manual
Manual DM-D121-2024_DL2 retrofit DL850 270kHz 20200715
1145 KB
