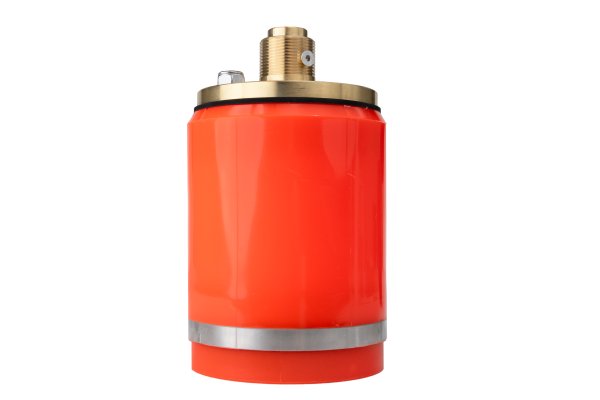

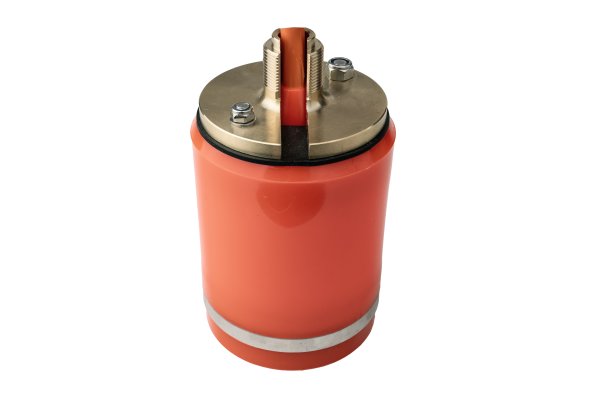

SKIPPER dual axis Doppler sensor for SB-100-SB and DB-100-SB

Part Number: DL2SG-SA

SKIPPER DL2 sensor is designed for the SKIPPER DL2 dual axis Doppler speed log system. It provides speed through water (STW) and speed over ground (SOG) in two or three axis (Doppler). DL2SG-SA sensor for SB-100-SB and DB-100-SB.

Read product description

Where to buy

Features

Only to be used with SKIPPER DL2 system
Dual frequency operation
100 mm in diameter
Cable length 40 m

Product:	Sensor for SKIPPER DL2 Dual axis Doppler speed log system
Part number:	DL2SG-SA
Mounting options:	SB-100-SB Sea valve for single bottom DB-100-SB Sea valve for double bottom
Range:	SOG down to 150-200 m depending on conditions
Material:	Polyurithane
Weight:	9 kgs
Cable length:	40 m
Diameter:	100 mm
Classification:	MO Wheelmarked CCS on request RMRS on request MED-B

Documentation type

Date

Type

Name

Size

Download

16.07.26

Data sheet

Datasheet DL2SG-SA Log sensor for Sea valve 2022-05-20

626 KB

30.06.26

Marketing material

Product brochure DL2 (2023-09-19)

791 KB

07.07.26

Marketing material

Product brochure DL2_option (2018-05-25)

450 KB
