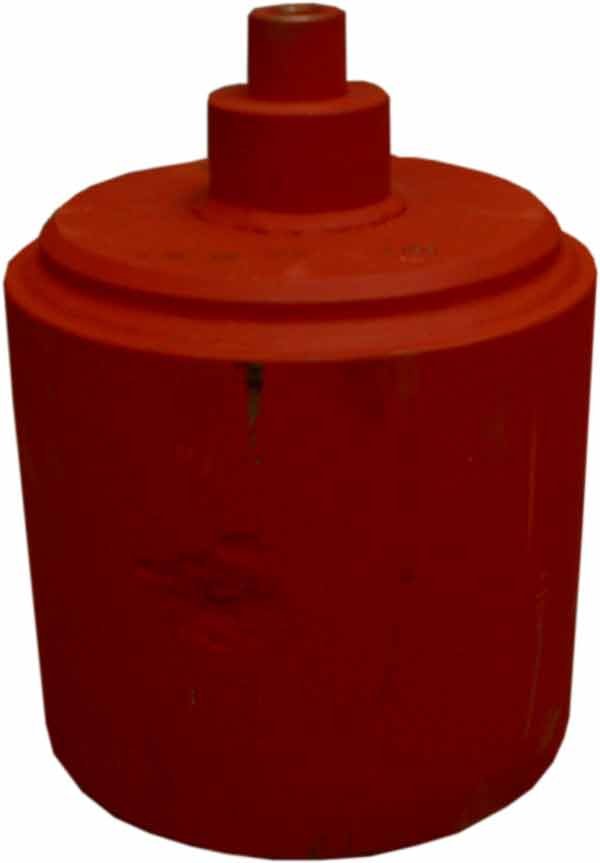

SKIPPER ETNST standard steel tank

Part Number: ETNST

The ETNST is a standard steel tank. It is designed for SKIPPER transducers, but could also be used for other sensors with special adaptors.

Read product description

Features

  • Standard steel tank
  • DNV approval as standard
  • CCS available on request
  • Other approvals on request

Product:

Standard steel tank
Part number: ETNST

Opening diameter:

100 mm

Hull type:
All steel hulls
Tank material:
Steel
Flange material:
N/A
Approval with part number:
  • ETNST Standard with DNV approval
  • ETNST-ABS With ABS approval
  • ETNST-BV With BV approval
  • ETNST-LR With LR approval
  • ETNST-RINA With RINA approval
Mandatory accessories:A-PACKING Special packing materials
Weight:
35 kgs
Designed for:
  • ETN050T 50 kHz transducer with 25 m cable
  • ETN050XT 50 kHz transducer with 40 m cable
  • ETN200T 200 kHz transducer with 25 m cable
  • ETN200XT 200 kHz transducer with 40 m cable
  • ETN200ST 200 kHz transducer with 25 m cable
  • ETN200SXT 200 kHz transducer with 40 m cable
  • ETS50200T-SA 50/200 kHz dual transducer with 25 m cable
  • ETS50200XT-SA 50/200 kHz dual transducer with 50 m cable
Service:Available in most major harbours, world-wide through extensive dealer network



Documentation type

Showing 4 documents

Date

Type

Name

Size

Download

10.07.26

Data sheet

Datasheet_ETNST Tank_2020-12-07

457 KB

Download document

29.06.26

Manual

Manual DM-BETNST-SA StandardTank 2017-12-20

857 KB

Download document

20.08.26

Technical

Data bulletin_SDB_TANK_01 Tool for packing nipple 20100608

555 KB

Download document

20.08.26

Technical

Data bulletin_Tanks - Illustrated parts list 20100114

1313 KB

Download document

Documentation for the maritime navigation range is currently being updated. Contact us if you need a document that is not listed above.
