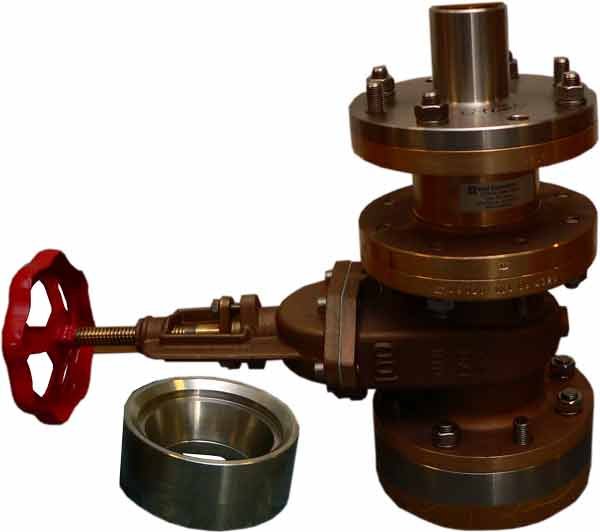

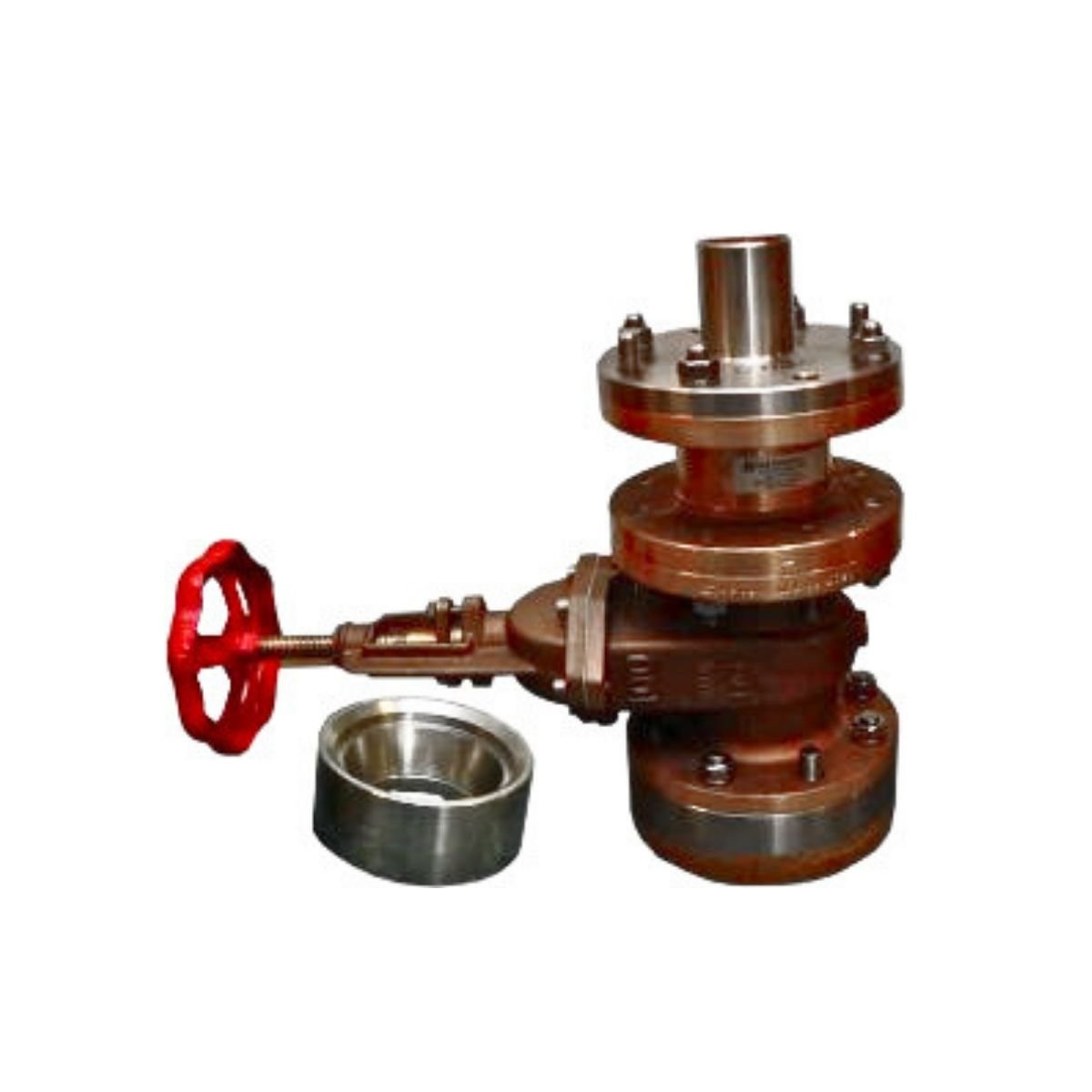

SKIPPER DB-100-SA 100 mm Gate Valve Double Bottom
Part Number: DB-100-SA
The DB-100-SA is a 100 mm Sea Valve with Gate Valve operation for Double Bottom Arrangement. It is designed for sensors made by SKIPPER Electronics, but could also be used for other sensors with special adaptors.
Specifications: Sea Valve type: Gate Valve Opening Diameter: 100 mm Hull type: Double Bottom Valve material: Brass Flange material: Stainless Steel A4 Approval with part number: DB-100-SA Standard with DNV approval DB-100-SA-ABS With ABS approval DB-100-SA-BV With BV approval DB-100-SA-LR With LR approval Mandatory Accessories: DB-100-SA-M-KIT Mounting kit A-PACKING Special packing materials Weight: 86 kgs Designed for: EML224SDB-SD Electromagnetic Speed Log Sensor DL2SG-SA Dual Axis Doppler Speed Log Sensor DL1SDB-SA Single Axis Doppler Speed Log Sensor DL850S27G-SB Dual Axis Doppler Speed Log Sensor ETN050G 50 kHz transducer with 25 m cable ETN050XG 50 kHz transducer with 40 m cable ETN200SG 200 kHz transducer with 25 m cable ETN200SXG 200 kHz transducer with 40 m cable ETS50200G-SA 50/200 kHz dual transducer with 25 m cable ETS50200XG-SA 50/200 kHz dual transducer with 40 m cable Service: Available in most major harbours, world-wide through extensive dealer network Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents
Features
- 100 mm Sea Valve
- Double Bottom Arrangement
- DNV approval as standard
- Other approvals on request
