SKIPPER SB-200-ECHO 200 mm gate valve for single bottom
Part Number: SB-200-ECHO

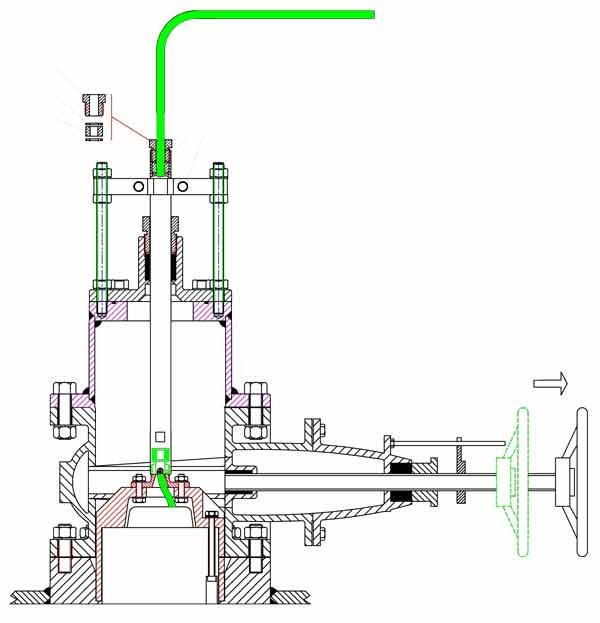

The SB-200-ECHO is a 200 mm sea valve with gate valve operation for single bottom arrangement. It is designed for SKIPPER sensors, but could also be used for other sensors with special adaptors.
Features
- 200 mm sea valve
- Single bottom arrangement
- DNV approval as standard
- CCS available on request
- Other approvals on request
| Product: | Gate valve |
| Part number: | SB-200-ECHO |
| Opening Diameter: | 200 mm |
| Hull type: | Single bottom |
| Valve material: | Brass |
| Flange material: | Stainless steel A4 |
| Approval with part number: |
|
| Mandatory Accessories: |
|
| Weight: | 150 kgs |
| Designed for: |
|
| Service: | Available in most major harbours, world-wide through extensive dealer network |
Documentation type
Showing 4 documents
Date
Type
Name
Size
Download
20.08.26
Technical
Data bulletin_SDB-SV_01 Sea Valve Illustrated parts list 2014-02-07
5614 KB
Download documentDocumentation for the maritime navigation range is currently being updated. Contact us if you need a document that is not listed above.
