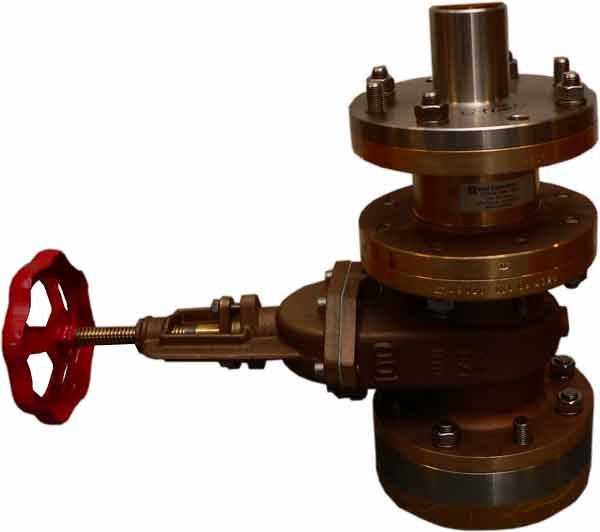

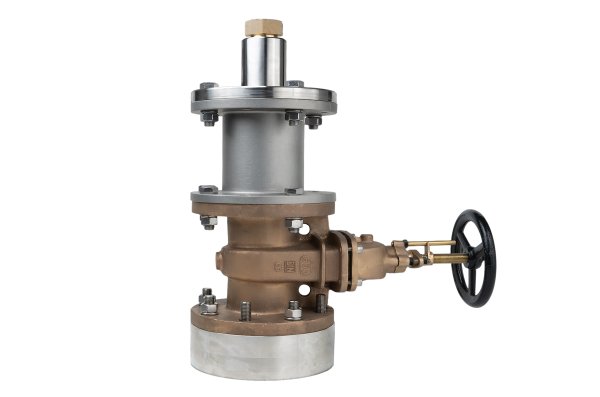

SKIPPER SB-100-SA 100 mm gate valve for single bottom

Part Number: SB-100-SA

The SB-100-SA is a 100 mm Sea Valve with gate valve operation for single bottom arrangement. It is designed for SKIPPER sensors, but could also be used for other sensors with special adaptors.

Read product description

Features

100 mm Sea Valve
Single Bottom Arrangement
DNV approval as standard
Other approvals on request

Product:	Gate valve
Part number:	SB-100-SA
Opening diameter:	100 mm
Hull type:	Single bottom
Valve material:	Brass
Flange material:	Stainless steel A4
Approval with part number:	SB-100-SA Standard with DNV approval SB-100-SA-ABS With ABS approval SB-100-SA-BV With BV approval SB-100-SA-LR With LR approval
Mandatory accessories:	SB-100-SB-M-KIT Mounting kit A-PACKING Special packing materials
Weight:	80 kgs
Designed for:	EML224SDB-SD Electromagnetic speed log sensor DL2SG-SA Dual axis Doppler speed log sensor DL1SDB-SA Single axis Doppler speed log sensor DL850S27G-SB Dual axis Doppler speed log sensor ETN050G 50 kHz Transducer with 25 m cable ETN050XG 50 kHzTransducer with 40 m cable ETN200SG 200 kHz Transducer with 25 m cable ETS50200G-SA 50/200 kHz Dual transducer with 25 m cable ETS50200XG-SA 50/200 kHz Dual transducer with 40 m cable
Service:	Available in most major harbours, world-wide through extensive dealer network

Documentation type

Date

Type

Name

Size

Download

29.06.26

Manual

Manual (OpIn) SB-100 2021-08-26

3943 KB

36ea5bc6c5414ee3d34be7edb53e3763 (1)
