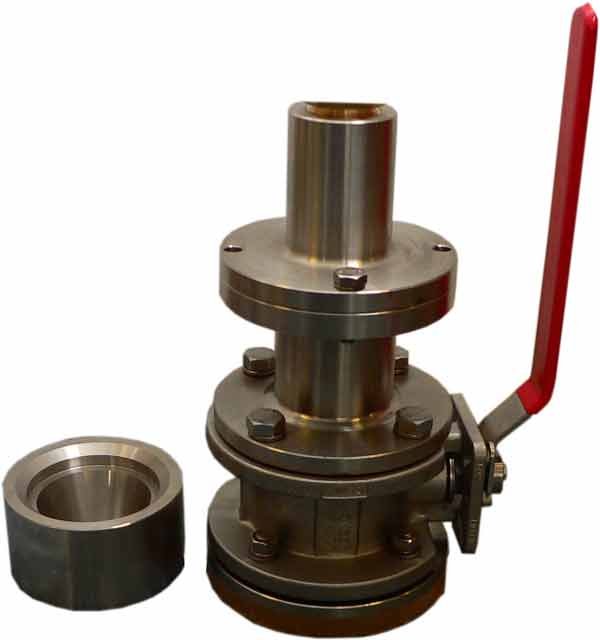

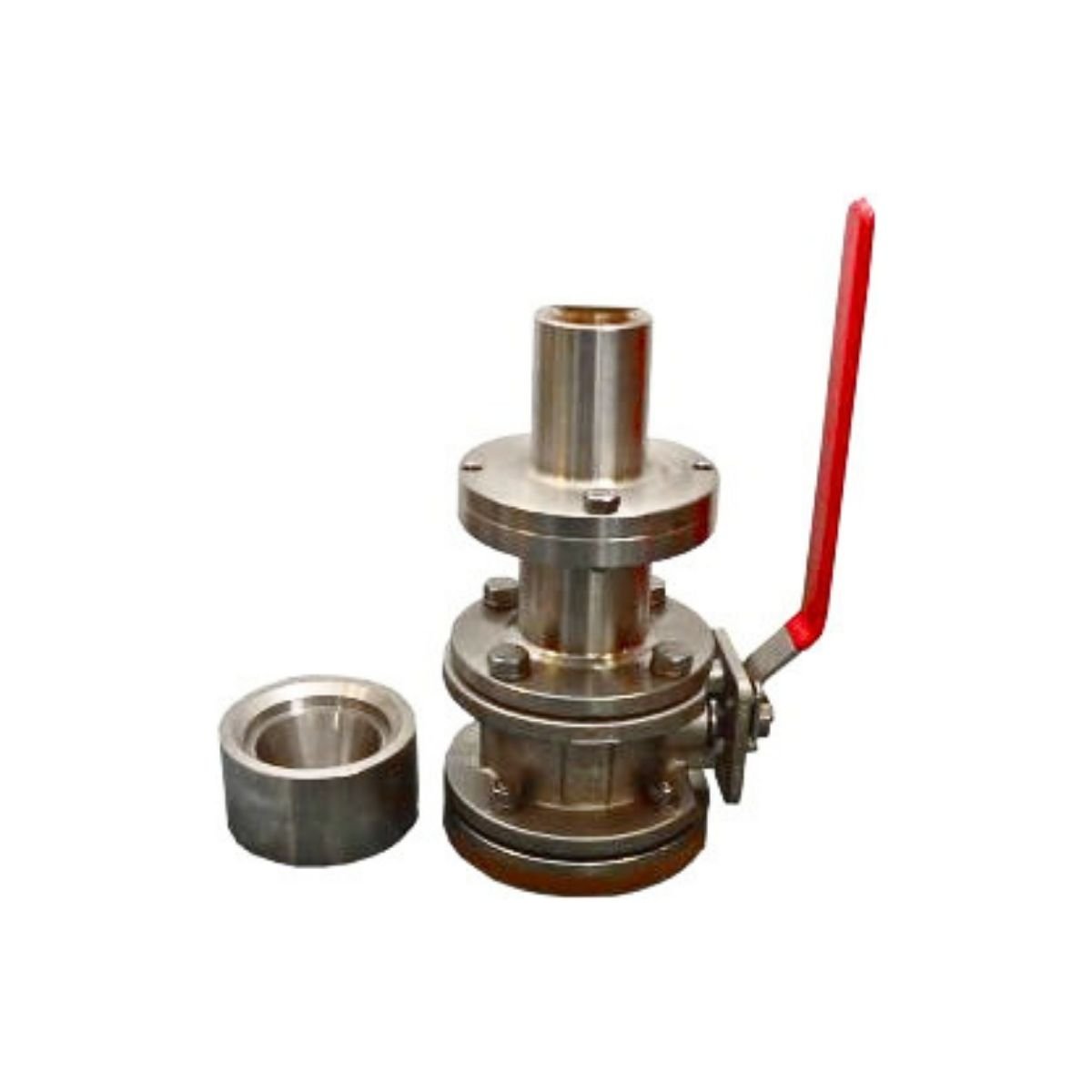

SKIPPER DB-60-SA 60 mm ball valve double bottom
Part Number: DB-60-SA
The DB-60-SA is a 60 mm sea valve with ball valve operation for double bottom arrangement. It is designed for SKIPPER sensors, but could also be used for other sensors with special adaptors.
Features
- 60 mm sea valve
- Double bottom arrangement
- DNV approval as standard
- Other approvals on request
| Product: | Ball valve |
| Part number: | DB-60-SA |
| Opening diameter: | 60 mm |
| Hull type: | Double bottom |
| Valve material: | Stainless steel A4 |
| Flange material: | Stainless steel A4 |
| Approval with part number: |
|
| Mandatory accessories: | DB-60-SA-M-KIT Mounting kit |
| Weight: | 35 kgs |
| Designed for: |
|
| Service: | Available in most major harbours, world-wide through extensive dealer network |
Documentation type
Date
Type
Name
Size
Download
13.07.26
Manual
Manual DM-BDB60-SB Rev 1003A DB-60-SA OpInMan20101020
969 KB
