SKIPPER ESN200 with options

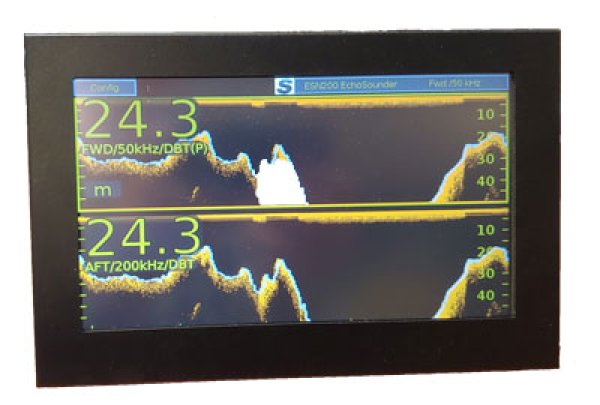

Specifications: Echo Sounder: ESN200 Functions: Auto/Manual TVG Auto/Manual Gain Auto/Manual Power Auto/Manual Range Transducer positioning Internal sounder for alarm/button press Power Supply: DC: 10-32 V (Control unit) DC: 20-32 V (Transceiver unit) AC: 115/230 (Transceiver unit) Display: 9" Touch Display 400 NITS Mounting Dimensions Display: 224.5 mm wide x 140 mm high (Cut-out) 242 mm wide x 158 mm high (Outside dimensions) Memory: 24 hours history, external logging feature over network Ranges: Selectable from 0-5 m to 0-5000 m Measuring accuracy: Error less than 1 % Frequencies: Approved frequencies: 50/200, 200, 50 and 38 kHz Other frequencies covered: 24, 30, 33, 100 and 210 kHz Output power: Nominal 700 W Max 1000 W Alarms: BAM compatible (IEC62923), ALF or ALR Internal sounder Relay output and AUX in/out Calendar/clock: From GPS input Output display: 3xNMEA0183 (IEC61162-1) Output Electronic unit JB70E2-SA: 5xNMEA0183(IEC61162-1) 2xLAN (IEC61192-450) 2xAUX 1xRelay Input Display: 2xNMEA0183 (IEC61192-1) Input Electronic unit JB70E2-SA: 2xLAN (IEC61192-450) 3xNMEA0183 (IEC61182-1) 1xAUX Options: Sync Option Special 2 GPS Option IR31DIM Remote/Automatic NMEA Dimming IR30DIM Remote dimming Multirepeater ESN200SB Extra Displays Several transducer options Retrofit plate for GDS101/GDS102 User functions: Auto mode (for all setings) Manual control: Gain, Power, TVG and frequencies Dimming (remote or local) Print/Archive function: Printers: Epson 350 European version only, OKI 280 Elite, Network printers Review: Service software via LAN Extended Internal Logging by USB or SD Classification: IMO Wheelmarked MED-B CCS RMRS Service: Available in most major harbours, world-wide through extensive dealer network Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents One full system consist of: Display: ESN200-SB Touch display Electronic Units: JB70E2-SA - standard JB70E2-SA-OPT - optional Optional software: AC-G001 - Sync option AC-G002 - Special 2 GPS version Transducer options: ETN024T 24 kHz for ETNSTCLF Tank, 40 m ETN024G 24 kHz for 200 mm Sea Valve, 40 m ETN038T 38 kHz for ETNSTCLF Tank, 40 m ETN038G 38 kHz for 200 mm Sea Valve, 40 m ETN050T 50 kHz for ETNST Tank, 25 m ETN050XT 50 kHz for ETNST Tank, 40 m ETN200T 200 kHz for ETNST Tank, 25 m ETN200XT 200 kHz for ETNST Tank, 40 m ETN050G 50 kHz for 100 mm Sea Valve, 25 m ETN050XG 50 kHz for 100 mm Sea Valve, 40 m ETN200SG 200 kHz for 100 mm Sea Valve, 25 m ETN200SXG 200 kHz for 100 mm Sea Valve, 40 m ETN050BEL 50 kHz for ETNSTCI Ice Tank, 25 m ETN050BELX 50 kHz for ETNSTCI Ice Tank, 40 m ETN200FS 200 kHz for ETNSTCI Ice Tank, 25 m ETN200FSX 200 kHz for ETNSTCI Ice Tank, 40 m ETS50200TA-SA 50/200 kHz dual for ETNALC Alu Tank, 25 m ETS50200XTA-SA 50/200 kHz dual for ETNALC Alu Tank, 50 m ETN050TA 50 kHz for ETNALC Alu Tank, 25 m ETN050XTA 50 kHz for ETNALC Alu Tank, 40 m ETN200STA 200 kHz for ETNALC Alu Tank, 25 m ETN200SXTA 200 kHz for ETNALC Alu Tank, 40 m ETS50200T-SA 50/200 kHz dual for ETNST Tank, 25 m ETS50200XT-SA 50/200 kHz dual for ETNST Tank, 50 m ETS50200TL-SA 50/200 kHz dual for Elac Tank (LSE297/313), 25 m ETS50200XTL-SA 50/200 kHz dual for Elac Tank (LSE297/313), 50 m ETS50200G-SA 50/200 kHz dual for 100 mm Sea Valve, 25 m ETS50200XG-SA 50/200 kHz dual for 100 mm Sea Valve, 50 m Bottom housings: SB-100-SB 100 mm Sea Valve for single bottom DB-100-SB 100 mm Sea Valve for double bottom ETNST Steel Tank ETNSTCLF Steel Tank Low Frequency ETNALC Aluminium Tank ETNSTCI Ice protected Steel Tank ETNSTCILF Ice protected Steel Tank Low Frequency SB-200-ECHO 200 mm Sea Valve for single bottom
