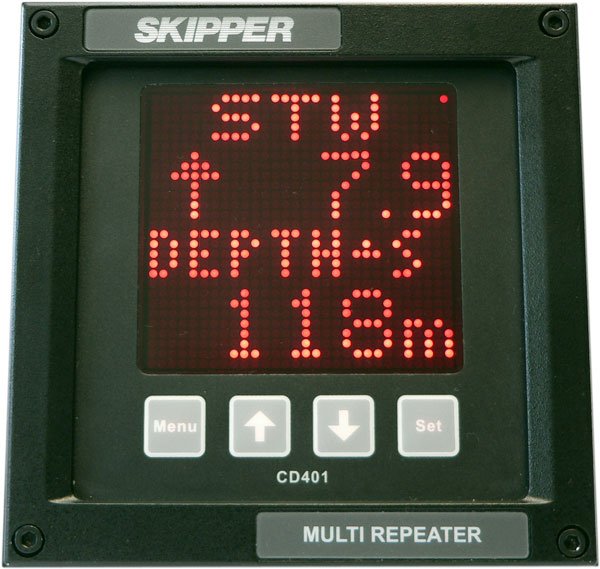

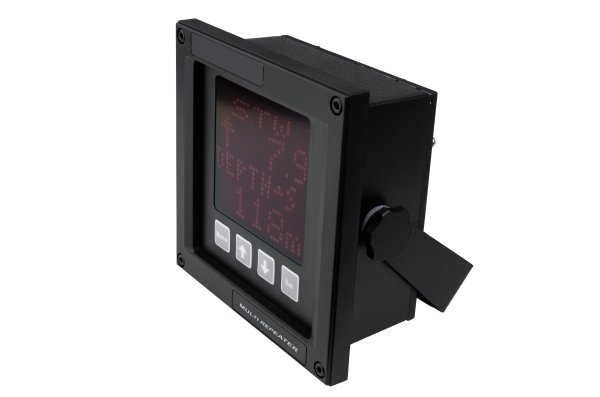

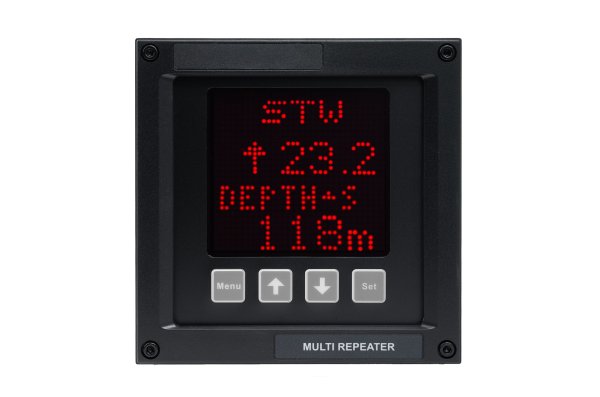

SKIPPER multirepeater

Part Number: CD401MR-SC

The SKIPPER CD401MR is a remote multirepeater for NMEA0183 signals. It is designed for use with SKIPPER products together with products from other manufacturers, when these use NMEA 0183 output.

Read product description

Where to buy

Features

Compact multirepeater
Depth below surface, keel and transducer
Speed over ground and through water
Distance, total/trip for both ground and water
Heading, true, magnetic and relative
Rotation, rate of turn and direction
Wind speed and direction (true, magnetic and relative)
Temperature in water and air
Drive, RPM, propeller pitch and rudder position
Clock UTC, local time and expected time of arrival
Current, direction and speed (Only available in CD401MR-SB version)

Part number	CD401MR-SC
Power supply:	DC: 18-32 V
Power consumption:	Up to 4 lines with DOT LED
Display output:	Depth: below surface, keel and transducer Speed over ground: longitudinal, transversal fore, transversal aft(Docking) Speed through water: longitudinal, transversal fore, transversal aft(Docking) Heading: true, magnetic and relative Wind: true, magnetic and relative speed and direction Temperature: water and air Drive: RPM, propeller pitch and rudder position Clock: UTC, local time and ETA Distance travelled through water and over ground: trip and total Current: true and relative speed and direction
Mounting dimensions:	124x124 mm. bracket or panel mounting. Brackets included.
Front plate:	144x144 mm to DIN standard
Depth:	59 mm
Weight:	1 kgs
IP rating:	56

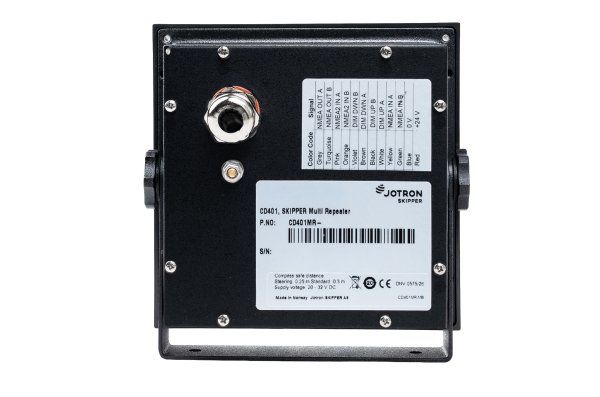

Inputs:	NMEA 0183 protocols Remote dimmer input Depth: DPT, DBK, DBT, DBS Speed: VBW, VTG, VHW Distance: VLW Heading: VTG, VHW, THS, HDT, HDM, HDG Rotation: ROT Pitch and Roll: XDR Wind: MWV, VWR, VWT, MWD Temperature: MTA, MTW, MDA Drive: RPM, RSA Clock: ZTG, ZDA, GGA, RMC Current: IIVDR, PSKPVDR Auxillary: User defined
Classifications:	Made according to IMO performance standard IEC 60945/2002
Service:	Available in most major harbours, world-wide through extensive dealer network

Documentation type

Date

Type

Name

Size

Download

02.07.26

Broschure Multirepeater CD401MR-SB_30072014

1594 KB

10.07.26

CD401MR-XX Approval tests - E07412-00- Customer summary

1665 KB

08.07.26

Manual

Manual (OpIn) DM-R005-SB-2526 Compact Multi Repeater MR sw1.2X (2025_07_03)

1100 KB

08.07.26

Manual

Manual (OpIn) DM-R006-SC-2526 Compact Multi Repeater MR sw1.6x (2025_07_03) web

1184 KB
