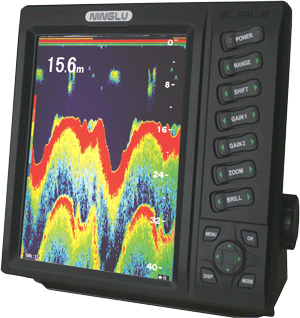

Ninglu DF612

Part Number: DF612

Ninglu is a 10,4” colour LCD fishery Echo Sounder with two frequencies (50 and 200 kHz). It is possible to see one transducer in the full display or split the display to see both transducers. DF612 is delivered complete with a dual frequency transducer (50 and 200 kHz).

Read product description

Specifications: Part number: DF612 10" Display ETF50200DF612 Dual Transducer 50/200kHz with 15 m cable Power supply: DC: 19-33 V Power consumption: <25 W at 24 VDC Display: 10,4” colour TFT LCD (640 x 480 px) Dimensions: 270 x 264 mm Cable length: 15 m with plug Display setup: Single low frequency (50 kHz) Single hight frequency (200 kHz) Single frequency and bottom expansion Double frequency Double freqencies and bottom expansion Ranges: Selectable from 0 - 2000 m Units: Meter Fathoms Frequencies: Combined on 50 and 200 kHz Depth alarms: Shallow alarm Deep water alarm Fish alarm Data output: NMEA0183 (MTW,DBT) Service: Available in most major harbours, world-wide through extensive dealer network Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents

Features

Dual frequency 50/200 kHz
10,4" LCD screen
50/200 kHz transducer included
Easy to operate
