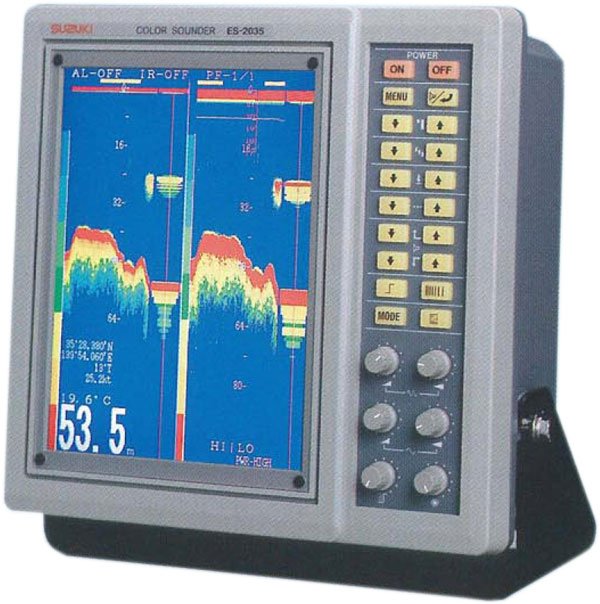

Suzuki ES2035BF
Part Number: EF2035BF
Suzuki ES2035BF is a dual channel echo sounder. It may operate on both 50 and 200 kHz simultaniously, or you may only use one of the frequency for the full display.
Specifications: Part number: EF2035BF Power supply: DC: 10.5-40 V Power consumption: 45 W at 24 VDC Display: 10,4” TFT Colour LCD (H480xV640 pix) Mounting Dimensions: 296 x 288 mm Weight on display: 5 kg included brackets Display setup: 50 kHz Normal display 200 kHz Normal display 50/200 kHz Dual display Bottom expansion display Small target display Navigation data display A-Scope Ranges: Selectable from 0 - 5000 m, fm. or br. Units: Meter Br Fathoms Frequencies available: 50 kHz (600 W or 1 kW) 200 kHz (600 W) Recomended transducers: ETF50D 50 kHz, 2 kW ETF050BZC 50 kHz, 800 W ZZL-01021 200 kHz, 1.5 kW Alarms: Shallow water alarm Deep water alarm Data output: NMEA0183 (MTW,DBT) Inputs: Water temperature sensor (OP-102, OP-41-1)* Water temperature date (NMEA0183 (MTW))* * Optional equipment is required Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents
Features
- Dual frequency 50/200 kHz
- 1 kW power
- 10,4" LCD screen
