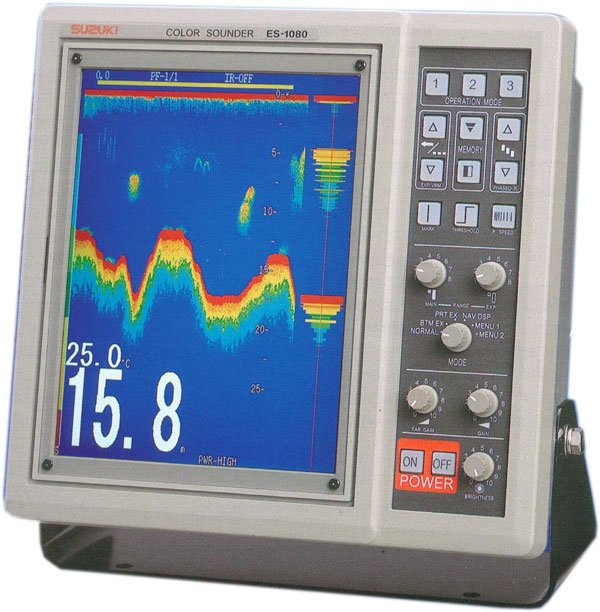

Suzuki ES1080FFS

Specifications: Part number: EF1080FFS Power supply: DC: 10.5-40 V Power consumption: 40 W at 24 VDC Display: 10,4” TFT Colour LCD (H480xV640 pix) Mounting Dimensions: 296 x 288 mm Weight on display: 5 kg included brackets Display setup: Normal display Bottom expansion display Partial expansion display Navigation data display Range setting/sounder display Function settings/sounder display Colour palette set menu Ranges: Up to 999 m, br, fm or 2999 ft. Units: Meter Br Fathoms Feet Frequencies available: 20 kHz 24 kHz 28 kHz 38 kHz 40 kHz 45 kHz 49 kHz 50 kHz 60 kHz 70 kHz 75 kHz 80 kHz 150 kHz 200 kHz Recomended transducers: ETF024T 24 kHz, 3 kW ETF038T 38 kHz, 3 kW ETF38A 38 kHz, 2.5 kW ETF38E 38 kHz, 1.2 kW ETF50D 50 kHz, 2 kW ETF050BZC 50 kHz, 800 W ZZL-01021 200 kHz, 1.5 kW Alarms: Shallow water alarm Deep water alarm Data output: NMEA0183 (MTW,DBT) Inputs: Water temperature sensor (OP-102, OP-41-1)* Water temperature date (NMEA0183 (MTW))* Navigational Data (NMEA0183)* External sounder* * Optional equipment is required Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents
