Ninglu FS117
Part Number: FS117

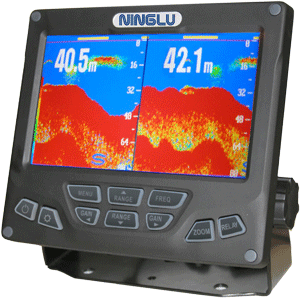

Ninglu FS117 is a 7" colour LCD fishery Echo Sounder with two frequencies (50 and 200 kHz). It is possible to see one transducer in the full display or split the display to see both transducers. FS117 is delivered complete with dual frequency transducer (50 and 200 kHz).
Specifications: Part number: FS117 7" display ETF50200N Dual Transducer 50/200kHz with 15 m cable Power supply: DC: 11.6-39 V Power consumption: <25 W Display: 7" colour TFT LCD (480x234 pix) Dimensions: 188 x 164 mm Cable length: 15 m Display setup: Single low frequency (50 kHz) Single hight frequency (200 kHz) Single frequency and bottom expansion Double frequency Double freqencies and bottom expansion Ranges: Selectable from 0 - 280 m Units: Meter Fathoms Frequencies: Combined on 50 and 200 kHz Depth alarm: Alarm for shallow water Alarm for deep water Fish alarm Data output: NMEA0183 (MTW,DBT) Service: Available in most major harbours, world-wide through extensive dealer network Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents
Features
- Dual frequency 50/200 kHz
- 7" TFT, 480 x 234 pixels
- 50/200 kHz transducer included
- Easy to operate
