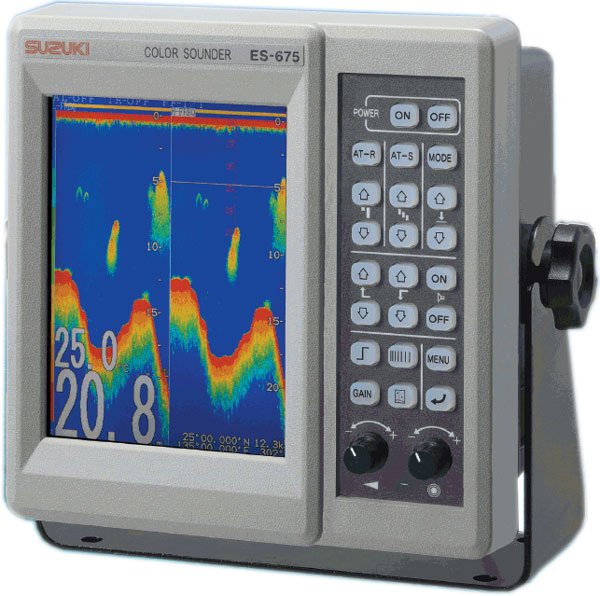

Suzuki ES675
Part Number: ES-675
Suzuki ES-675 is a 6,5” colour LCD fishery Echo Sounder with two frequencies (50 and 200 kHz). It is possible to see one transducer in the full display or split the display to see both transducers. ES-675 is complete with a dual frequency transducer (50 and 200 kHz).
Specifications: Part number: EF675BF ES-675 6,5"TFT with dual frequency transducer 50/200kHz Power supply: DC: 10.5-30 V Power consumption: 16 W at 24 VDC Display: 6,5” LCD (640 x 480 pix, 8 or 16 colours) Mounting Dimensions: 185 x 190 mm cut out Weight on display: 2,6 kg without brackets Weight on transducer: 1,1 kg with cable Cable length: 59 mm Weight: 8 m with plug Display setup: Single low frequency (50 kHz) Single hight frequency (200 kHz) Single frequency and bottom expansion Double frequency Double freqencies and bottom expansion Setup meny Colour meny Ranges: Selectable from 0 - 1000 m Units: Meter Br. Feet Frequencies: Combined on 50 and 200 kHz Depth Alarm: Shallow water alarm Deep water alarm Data output: NMEA0183 (MTW,DBT) Inputs: Water temperature sensor (OP-102, OP-41-1) Water temperature date (NMEA 0183 (MTW)) Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents
Features
- Dual frequency 50/200 kHz
- 6,5" LCD screen
- 50/200 kHz transducer included
