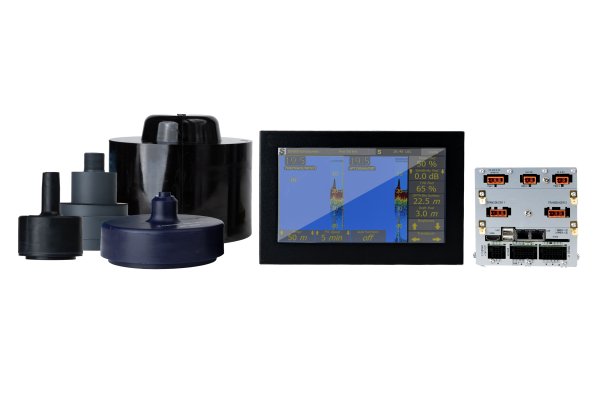

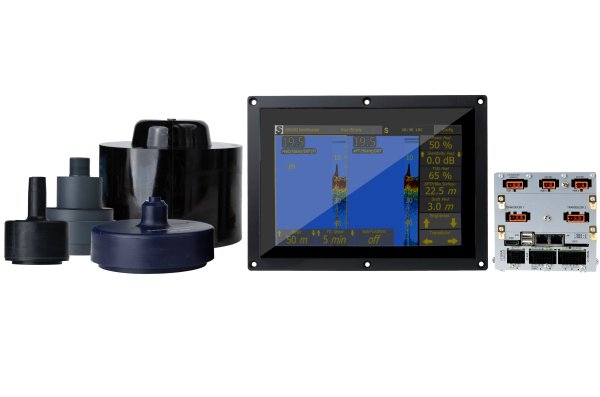

SKIPPER ESN200 IMO Wheelmarked Echo Sounder

Specifications: Echo Sounder: ESN200 Functions: Auto/Manual TVG Auto/Manual Gain Auto/Manual Power Auto/Manual Range Transducer positioning Internal sounder for alarm/button press Power Supply: DC: 20-32 V AC: 115/230 V Display: 9" or 10.1" Touch Display Mounting Dimensions: 224.5 mm wide x 140 mm high (Cut-out) 242 mm wide x 158 mm high (Outside dimensions) Memory: 24 hours history, external logging feature over network Ranges: Selectable from 0-5 m Selectable from 0-5000 m Measuring accuracy: Error less than 1 % Frequencies: Approved frequencies: 50/200 kHz, 200 kHz 50 kHz and 38 kHz Other frequencies covered: 24, 30, 33, 100 and 210 kHz Output power: Nominal 700 W Max> 1000 W Alarms: BAM compatible (IEC62923) (ALF and ALR) Interlan sounder Relay output and AUX in/out Calendar/clock: From GPS input Data output: 2xLAN (IEC61192-1) Control unit 5xNMEA0183 (IEC61162-1) Control unit 2xAUX Control unit 1xRelay Control unit 3xNMEA0183 Display unit 1xLAN Display unit DPT, PSKDPT, DBS, DBK, ALR and ALF Inputs: 3xNMEA0183(IEC61162-1) Control unit 1xAUX Control unit 2xNMEA0183 Inputs (IEC61192-1) Display 1xLAN Display Accepting signals from GPS, Gyro, Alarm and Draft sensor Language: English Option: Remote depth indicators 24 kHz transducer 38 kHz transducer 50 kHz transducer 200 kHz transducer Dual 50/200 kHz transducer Retrofit plate for GDS101/GDS102 Remote dimmer Classification: IMO Wheelmarked MED-B CCS RMRS Service: Available in most major harbours, world-wide through extensive dealer network Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents One full system consist of: Display: ESN200-SB 9" Touch display or ESN200-SC 10.1" Touch display Electronic Unit: JB70E2-SA Transducer options: ETN024T 24 kHz for ETNSTCLF Tank, 40 m ETN038T 38 kHz for ETNSTCLF Tank, 40 m ETN024G 24 kHz for 200 mm Sea Valve, 40 m ETN038G 38 kHz for 200 mm Sea Valve, 40 m ETN050T 50 kHz for ETNST Tank, 25 m ETN050XT 50 kHz for ETNST Tank, 40 m ETN200T 200 kHz for ETNST Tank, 25 m ETN200XT 200 kHz for ETNST Tank, 40 m ETN050T-ICE 50 kHz for ETNSTCI Ice tank 25 m ETN050XT-ICE 50 kHz for ETNSTCI Ice tank 40 m ETN200ST-ICE 200 kHz for ETNSTCI Ice tank 25 m ETN200SXT-ICE 200 kHz for ETNSTCI Ice tank 40 m ETN050G 50 kHz for 100 mm Sea Valve, 25 m ETN050XG 50 kHz for 100 mm Sea Valve, 40 m ETN200SG 200 kHz for 100 mm Sea Valve, 25 m ETN200SXG 200 kHz for 100 mm Sea Valve, 40 m ETN050BEL 50 kHz for ETNSLJB, 25 m ETN050BELX 50 kHz for ETNSLJB , 40 m ETN200FS 200 kHz for ETNSLJB , 25 m ETN200FSX 200 kHz for ETNSLJB , 40 m ETS50200TA-SA 50/200 kHz dual for ETNALC Alu Tank, 25 m ETS50200XTA-SA 50/200 kHz dual for ETNALC Alu Tank, 50 m ETN050TA 50 kHz for ETNALC Alu Tank, 25 m ETN050XTA 50 kHz for ETNALC Alu Tank, 40 m ETN200STA 200 kHz for ETNALC Alu Tank, 25 m ETN200SXTA 200 kHz for ETNALC Alu Tank, 40 m ETS50200T-SA 50/200 kHz dual for ETNST Tank, 25 m ETS50200XT-SA 50/200 kHz dual for ETNST Tank, 50 m ETS50200TL-SA 50/200 kHz dual for Elac Tank (LSE297/313), 25 m ETS50200XTL-SA 50/200 kHz dual for Elac Tank (LSE297/313), 50 m ETS50200G-SA 50/200 kHz dual for 100 mm Sea Valve, 25 m ETS50200XG-SA 50/200 kHz dual for 100 mm Sea Valve, 50 m Bottom housings: SB-100-SB Sea Valve for single bottom DB-100-SB Sea Valve for double bottom ETNST Steel Tank ETNALC Aluminium Tank ETNSTCI Ice protected Steel Tank SB-200-ECHO Sea Valve for low frequency Transducer ETNSTCLF Steel Tank for low frequency Transducer ETNSTCILF Ice protected Steel Tank for low frequency Transducer

• IMO Wheelmarked with MED-B
• Navigation Echo Sounder
• Dual frequency

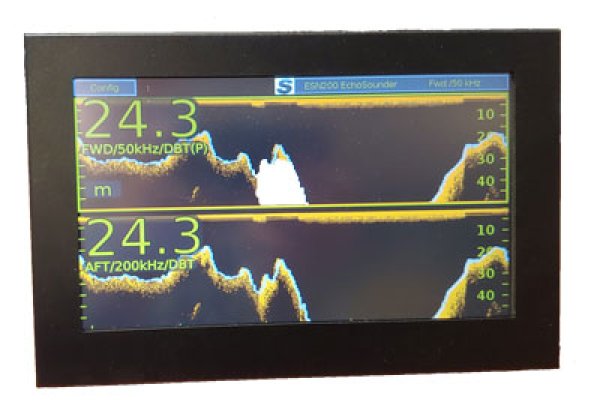

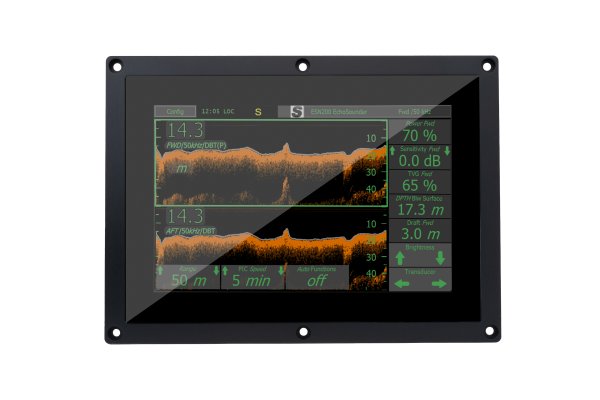

• Colour 9" or 10.1" touch screen
• Auto/Manual Gain
• Auto/Manual TVG
• Auto/Manual Range
• Auto/Manual Power
• INS and IBS ready
