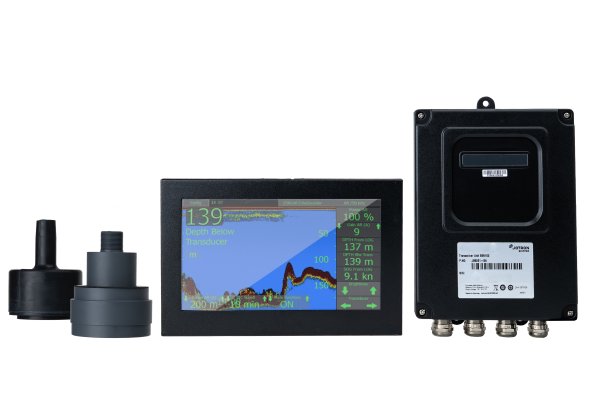

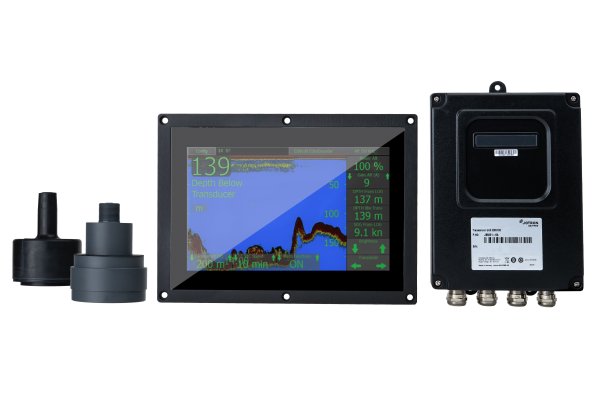

SKIPPER ESN100 IMO wheelmarked echo sounder

Part Number: ESN100

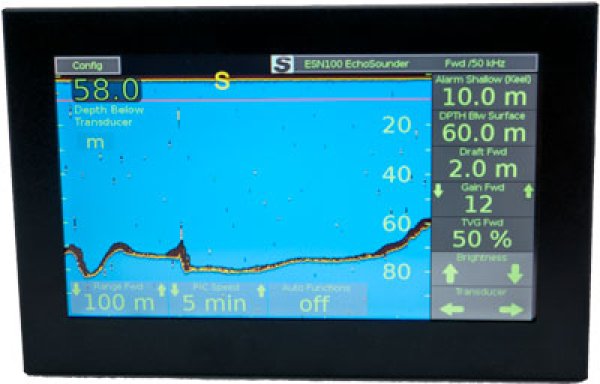

The SKIPPER The echo sounder graphics are continuously shown on the screen along with complete navigational details. Most of the functions are automatic.

Read product description

Features

IMO wheelmarked with MED-B
Navigation echo sounder
Single frequency - 50 or 200 kHz
Colour 9" touch screen
Auto Gain
Auto TVG
Auto range
Auto power
CCS available on request

Echo sounder	ESN100
Functions:	Auto/Manual TVG Auto/Manual gain Auto/Manual power Auto/Manual range Transducer positioning Internal sounder for alarm/button press
Power supply:	DC: 10-32 V (Control unit) DC: 21-36 V (Transceiver unit)
Power consumption:	Display unit: Nominal 6W Electronic unit: 20W
Display:	9" Touch Display
Mounting dimensions:	224.5 mm wide x 140 mm high (Cut-out) 242 mm wide x 158 mm high (Outside dimensions)
Memory:	24 hours history, external logging feature over network
Printer:	Epson LQ-350 Review: service software via LAN. Extended internal logging, by USB or SD
Ranges:	Selectable from 0-1000 m
Measuring accuracy:	Error less than 1 %
Frequencies:	50 and 200 kHz selectable Dual frequency (50/200 kHz) transducer may be used, but only one frequency may be used
Output power:	Approx. 700 W
Alarms:	Follows IEC standards (ALF and ALR)
Calendar/clock:	From GPS input
Data output:	1xNMEA0183 (IEC61162-1) DPT, PSKDPT, DBS, DBK, ALR and ALF
Inputs:	2xNMEA0183(IEC61162-1) Accepting signals from GPS, gyro, alarm and draft sensor
Language:	English
Options:	Remote depth indicators 50 kHz transducer 200 kHz transducer Dual 50/200 kHz transducer Retrofit plate for GDS101/GDS102
Classification:	IMO wheelmarked MED-B CCS
Service:	Available in most major harbours, world-wide through extensive dealer network

CU-M101-SA_NoDisp

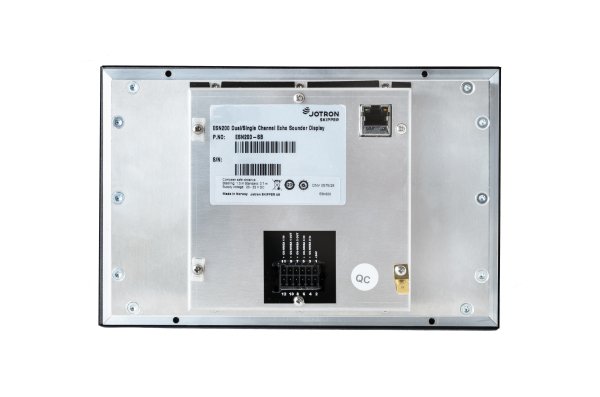

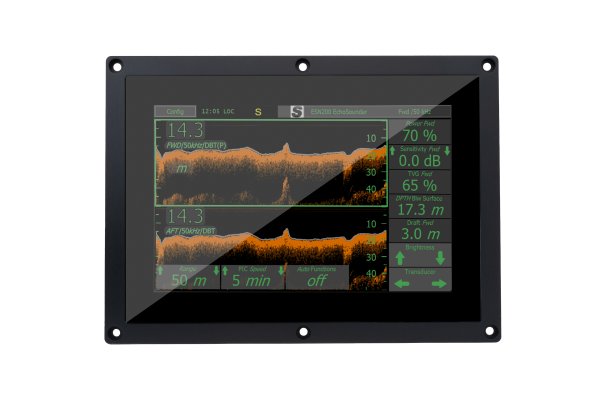

SKIPPER CU-M101-SA touch display

Part Number: CU-M101-SA

JB50E1-SA_A

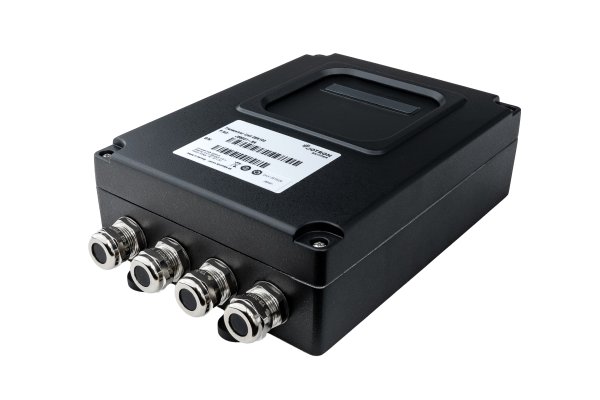

SKIPPER JB50E1-SA transciever unit

Part Number: JB50E1-SA

ETS50200G-SA_001_front

SKIPPER 50/200 kHz dual transducer

Part Number: Multiple options

SKIPPER ETN050G 50 kHz transducer for 100 mm sea valves

SKIPPER 50 kHz transducer

Part Number: Multiple options

ETN200T_002_front

SKIPPER 200 kHz transducer

Part Number: Multiple options

SB-100-SB_001_front

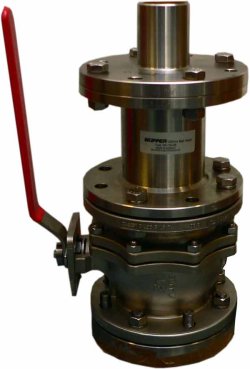

SKIPPER SB-100-SB 100 mm ball valve for single bottom

Part Number: SB-100-SB

DB-100-SB-redigert (1)

SKIPPER DB-100-SB 100 mm ball valve for double bottom

Part Number: DB-100-SB

WEB_ETNSTCL_001_front

SKIPPER ETNST standard steel tank

Part Number: ETNST

ETNALC_001_front

SKIPPER ETNALC aluminium tank

Part Number: ETNALC

ETNSTCI

SKIPPER ETNSTCI ice protected combo tank

Part Number: ETNSTCI

ZZL-01019_003

SKIPPER ZZL-01019 junction box for echo sounder transducers

Part Number: ZZL-01019

Date

Type

Name

Size

Download

29.06.26

Guide

Guide Echo Sounder setup and options 144

535 KB

29.06.26

Manual

Manual (OpIn)DM-G004-SB 2620 ESN100 (20260507)

5069 KB

26.06.26

Marketing material

Product brochure_ESN100 Navigation Echo Sounder

759 KB

20.08.26

Technical

Data bulletin_Adjusting Detection levels in the ESN series

857 KB

Documentation for the maritime navigation range is currently being updated. Contact us if you need a document that is not listed above.

CD401MR-SB_006_front

SKIPPER CD401MR multirepeater

Part Number: CD401MR

IR30DIM-SB_002_front

SKIPPER IR30DIM remote dimmer

Part Number: IR30DIM-SB

IR31DIM-SA_003_front

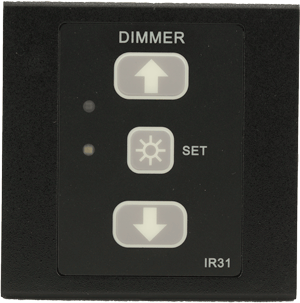

SKIPPER IR31 NMEA remote dimmer
