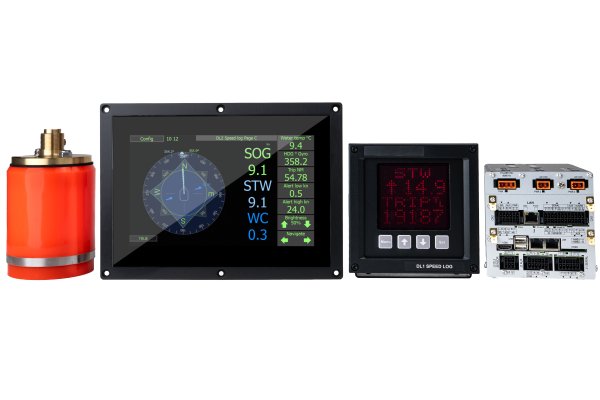

SKIPPER DL21 dual and single axis speed log

Part Number: DL21

The SKIPPER DL21 is a dual axis Doppler speed log and a single axis Doppler speed log in one sensor unit. It is working on the doppler principle, providing longitudinal and transversal ship’s speed (STW and SOG) and distance relative to sea water. The SKIPPER DL21 gives accurate navigation parameters, measured
as they happen, and presented in a logical, user friendly way. The new DL21 speed log is designed for ships over 50.000 GT with simultaneous and independent measurement of speed through water and speed over ground. This is according to new IMO resolution MSC334(90).

Read product description

Maritime partners

Features

IMO Wheelmarked with MED-B
Water speed log dual axis (STW)
Independent single axis Doppler speed log (STW)
Ground speed in dual axis (SOG)
Docking functionality as standard (Three axis in STW and SOG)

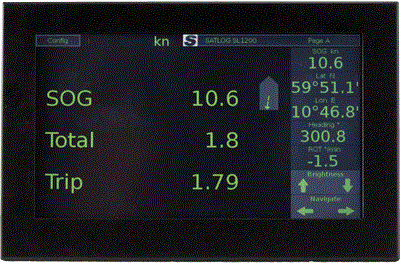

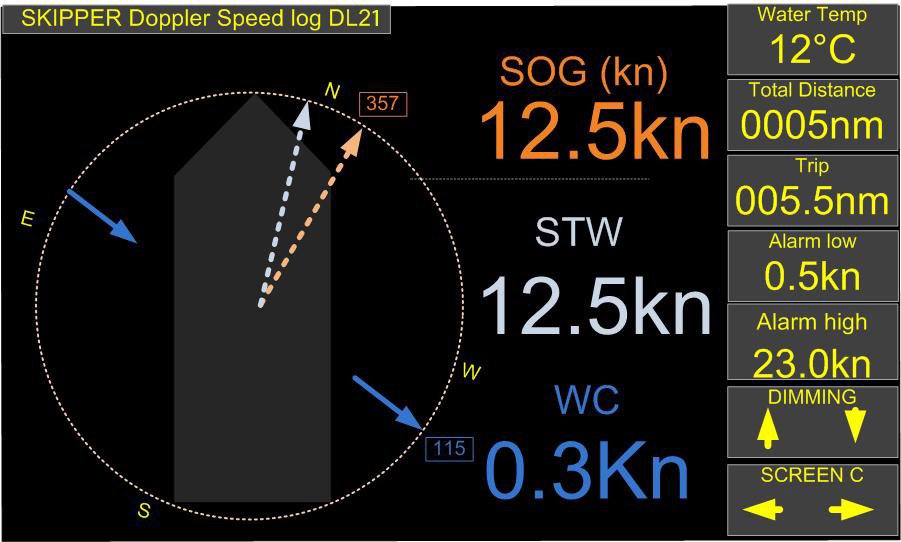

Touch display
RMRS and CCS available on request
Sea temperature readout from sensor
LAN and NMEA0183 output
User friendly programmable displays and integrated menus

Speed log	DL21
Number of axis	2 and 3, with 1 axis in addition
Speed range longitudinal	+/- 50 knots
Speed range transversal	+/- 50 knots
Water track (from)	2 meter
Temperature accuracy error	<1°C
Primary frequency	DL2: 270 SOG 850-920 STW primary 264 STW secondary / DL1: 700-730 kHz
Power supply	• AC:115-230 V 50/60 Hz • DC: 24 V
Power consumption	Max 30 W for complete speed log

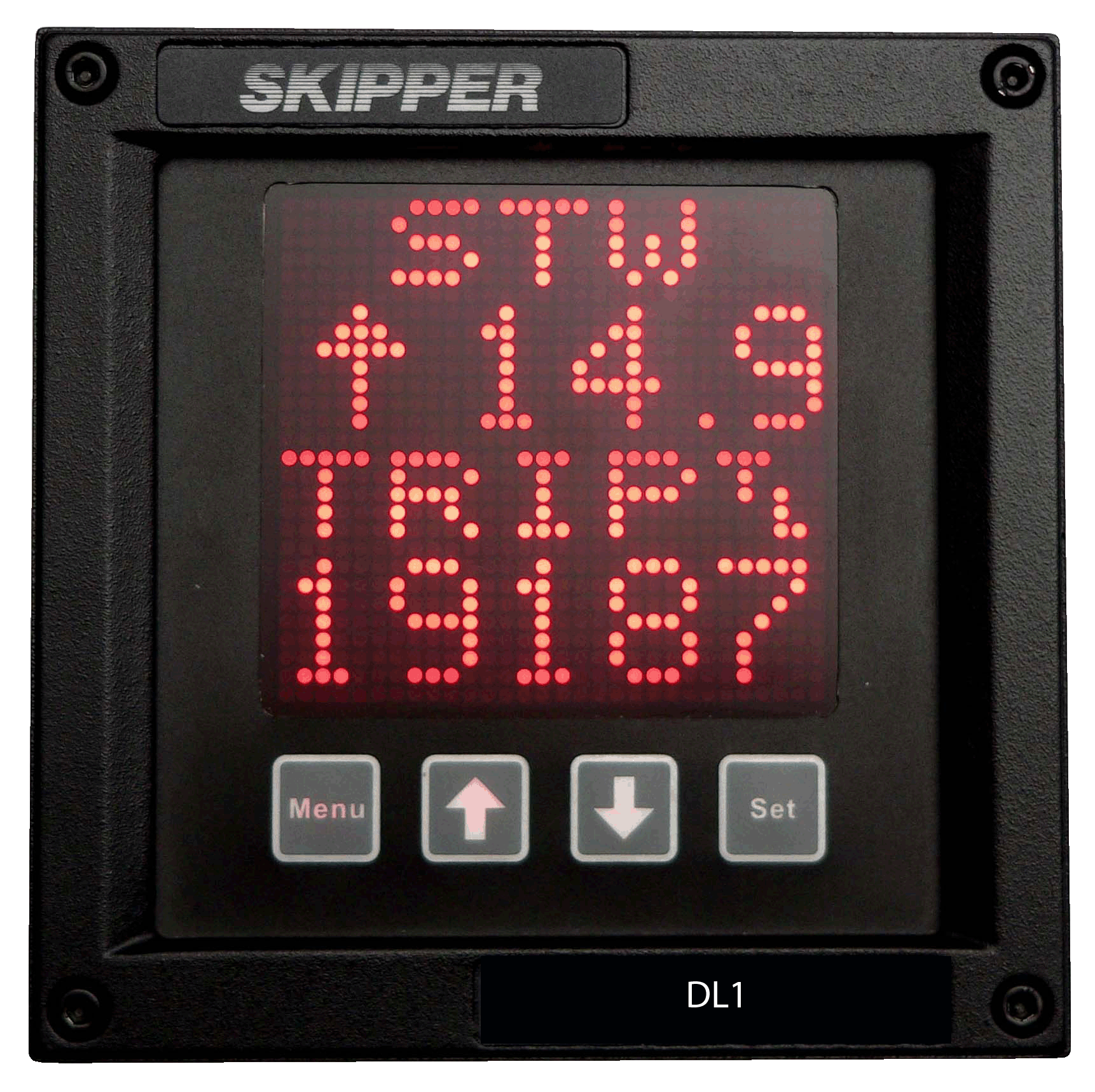

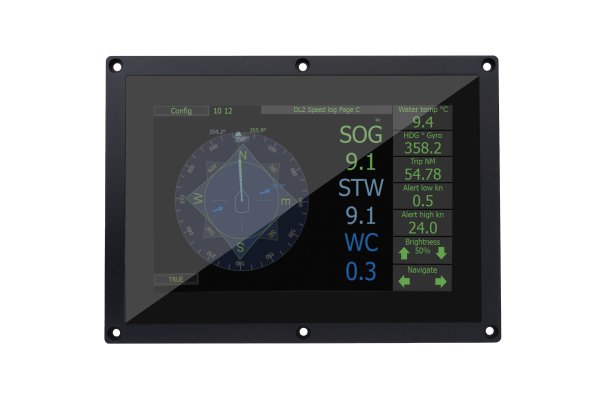

Display	9" Touch and dot LED display
Mounting dimensions display	• 124x124 mm. Bracket or panel mounting • 190x119x114 mm for touch display
Accuracy	0.2 knots or 2% whichever is greater
Cable length for display	None

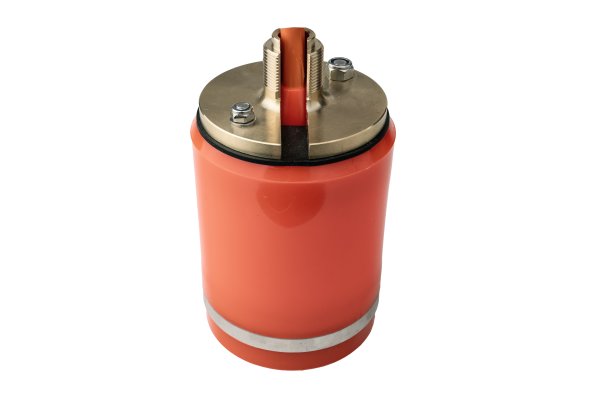

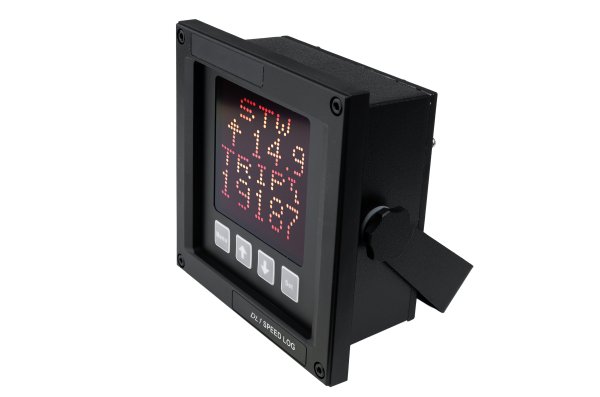

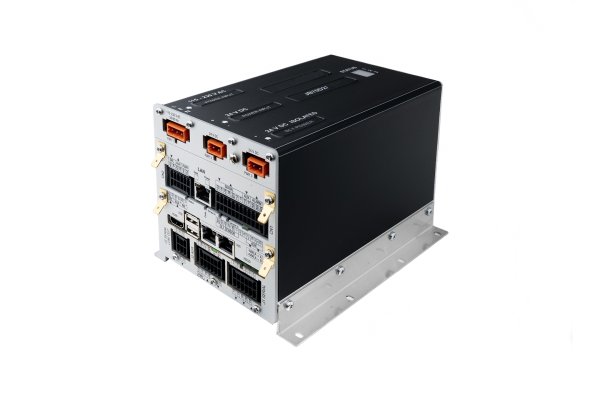

Weight	• 1 kgs for CD402CU-XX • 1,5 kgs for JB70D21-XX • 1.4 kgs for CU-M001-XX • 10 kgs for sensor with 40 m cable
Mounting options	• Steel Tank • Aluminium tank • 100 mm sea valve for single bottom • 100 mm sea valve for double bottom • Retrofit in ETNSLB used for DL850 540 kHz • Retrofit in sea valve for Sperry SRD 421/500
Speed alarms	• High and low speed limits • Power failure • Sensor failure
Clock	DL2: internal or From NMEA DL1: From NMEA
Outputs	• 3 x LAN (IEC61162-450) • 8 x NMEA0183 (IEC61162-1) • 5 x Auxiliary (pulse, limit etc.) • 2 x Relay (alarm etc.)
Inputs	• 3 x LAN (IEC61162-450) • 3 x NMEA0183 (IEC61162-1) • 3 x Auxiliary (alarm and sync)
NMEA outputs	• Speed: VBW and VHW • Distance: VLW • Others: MTW (Temperature)
Classification	• IMO Wheelmarked • CCS on request • RMRS on request • MED-B • MSC334(90) • IEC61023 • IEC60945 • IEC61162-1/2/450 • IEC62288 • Ready for IEC61924
IP rating	• IP 22 control unit • IP 22 electronic unit • IPX7 sensor unit
Service	Available in most major harbours, world-wide through extensive dealer network
