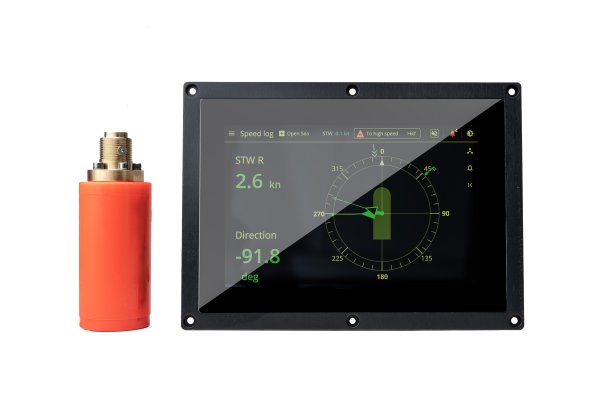

SKIPPER EML1200 dual axis speed log

Part Number: EML1200

EML1200 is a dual axis speed log providing the ship's speed in longitudinal and transversal axis working on the electromagnetic principle. This speed log provide speed through water (STW). EML1200 gives accurate navigation parameters, measured as they happen, and presented in a logical, user friendly way.

Read product description

Where to buy

Features

IMO Wheelmarked with MED-B

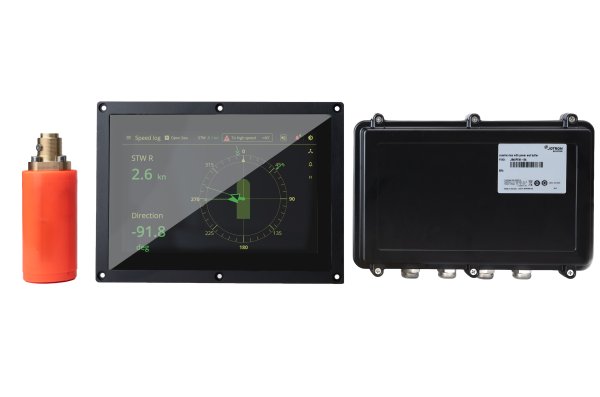

EML1100 - water speed log in single axis (STW)
EML1200 - water speed log in dual axis (STW)
10" Touch display
Sea temperature readout from sensor
LAN outputs and NMEA0183

Speed log	EML1100	EML1200
Number of axis:	1	2
Speed range longitudinal:	+/- 40 knots	+/- 40 knots
Speed range transversal:	N/A	+/- 40 knots
Water track (from):	0 meter
Temperature accuracy error:	<1°C	<1°C
Power supply:	2xDC: 24 V, auto switch over Power supply JB40 24VDC or 110-240VAC	2xDC: 24 V, auto switch over Power supply JB40 24VDC or 110-240VAC
Power consumption:	Max 30 W	Max 30 W

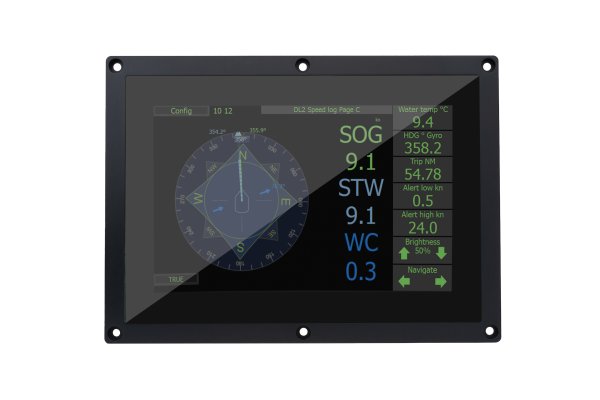

Display:	10" Graphical Touch display	10" Graphical touch display
Language:	English
Front plate:	287mm x 209,5 mm	287mm x 209,5 mm
Depth:	65 mm	65 mm
Weight:	2 kgs	2 kgs
Mounting options:		60 mm sea valve for single bottom 60 mm sea valve for double bottom Steel tank Aluminium tank 100 mm sea valve for single bottom 100 mm sea valve for double bottom Simrad NL-log retrofit Sagem/Safran retrofit Naviknot SRD331 retrofit PCSV60 retrofit
Speed alarms:		High and low speed limits Power failure Sensor failure
Outputs:		2 x LAN 2 independent LAN ports (IEC61162-450/460) 2x NMEA 0183 outputs (IEC61162-1) 1xcontact closure (pulse) Alarm (relay)
Inputs:		2 x LAN 2 independent LAN ports (IEC61162-450/460) 2 x NMEA 0183 inputs (IEC61162-1) External Dimming (DDC)
NMEA outputs:		Speed: VBW and VHW Distance: VLW Others: MTW (Temperature)
Classification:		IMO Wheelmarked CCS on request RMRS on request. MED-B
Service:		Available in most major harbours, world-wide through extensive dealer network
