SKIPPER SATLOG SL1300 – In development, coming soon

Part Number: SL1300

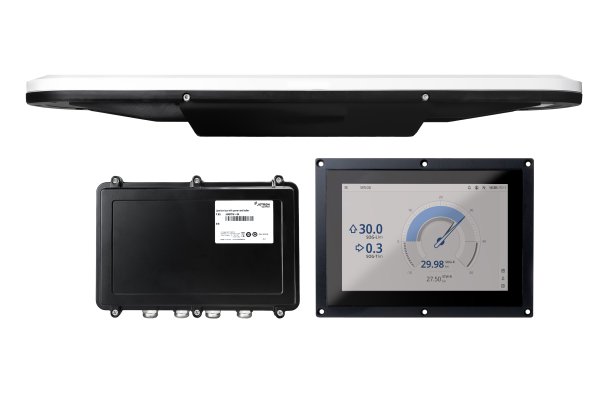

Coming soon, the SKIPPER SATLOG SL1300 is an advanced three axis speed log designed to provide longitudinal and fore/aft transversal ship speed over ground (SOG). The SKIPPER SATLOG SL1300 provides accurate navigation parameters measured as they happen, and presented through an intuitive and user-friendly interface.

Read product description

Features

IMO Wheelmarked with MED-B
Speed over ground (SOG) in three axis (Docking mode)
NMEA 0183 output
GPS and Glonas speed (SOG)
CCS available on request

Speed log:	SL1300
Number of axis:	3
Speed range longitudinal:	+/- 99.9 knots
Speed range transversal:	+/- 99.9 knots
Aft transversal speed	yes
Speed over ground from:	0 meter
Temperature accuracy error:	N/A
Power supply:	AC:115-230 V 50/60 Hz DC: 20-32 V
Power consumption:	Display 5W Elecronic unit 10W

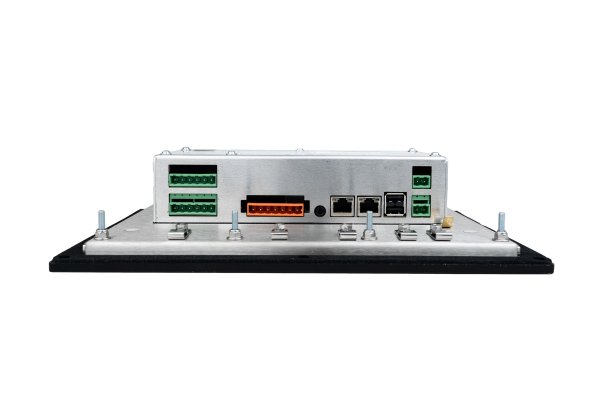

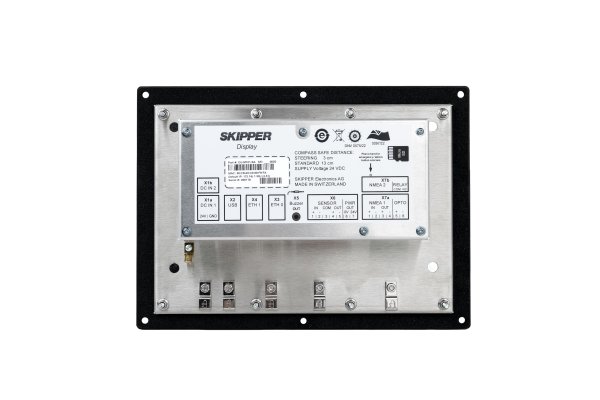

Display:	Multi - Panel 10.1" touch display, resolution 1280x800
Mounting dimensions display:	Touch display: 255.5 mm wide x 179 mm high
IP rating:	Display: IP22/IP66 Antenna: IP66/IP67
Accuracy:	<0.2 knots or 2% whatever is greater

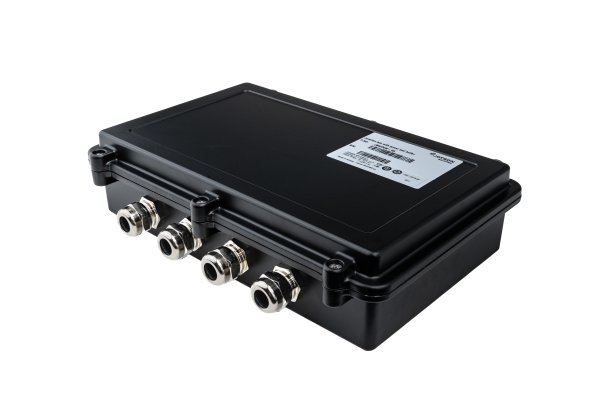

Weight:	Graphic display 1.2 kgs Antenna 3 kgs Antenna bracket 3.5kg Junction box 2 kg
Standard cable length:	Not included for the antenna. Needed cable is 4 TSP (Twisted, shielded pairs) minimum 0.5 mm2. Max length 100 m.
Mounting options:	Antenna only
Speed alarms:	High and low speed limits Power failure Sensor failure
Outputs/Inputs	2 LAN. IEC 61162-450 2 NMEA in. 2 NMEA out. NMEA 0183, IEC61162-1/2
NMEA outputs:	VBW: Dual ground speed Distance: VLW VTG: Actual course and speed relative to the ground DDC: Dimming command output GPS: Gyro and status HDT: Actual vessel heading in degrees. ROT: Rate of turn and direction of turn THS: Actual vessel heading in degrees GSA: Satellite DOP and active satellites GSV: Number of satellites in view, satellite ID and evaluation SNR: Position and time signals GLL: Longitude and latitude of vessel position, time of position fix and status GGA: Time, position and fix related data STWL: Speed Through Water Longitudinal. If a SKIPPER DL2, DL21, DL850, EML224 are connected to the system via NMEA or LAN, the system can display both speeds, and also calulate water current based on the the SOG and STW values STWT: Speed Through Water from an inputted signal Note: This system is a speed log and cannot be used as primary source of other types of information. Position, course over ground and heading is only to be used as secondary sources
Classification:	IMO Wheelmarked
Service:	Available in most major harbours, world-wide through extensive dealer network
