SKIPPER EML1100/1200

Part Number: EML1100/1200

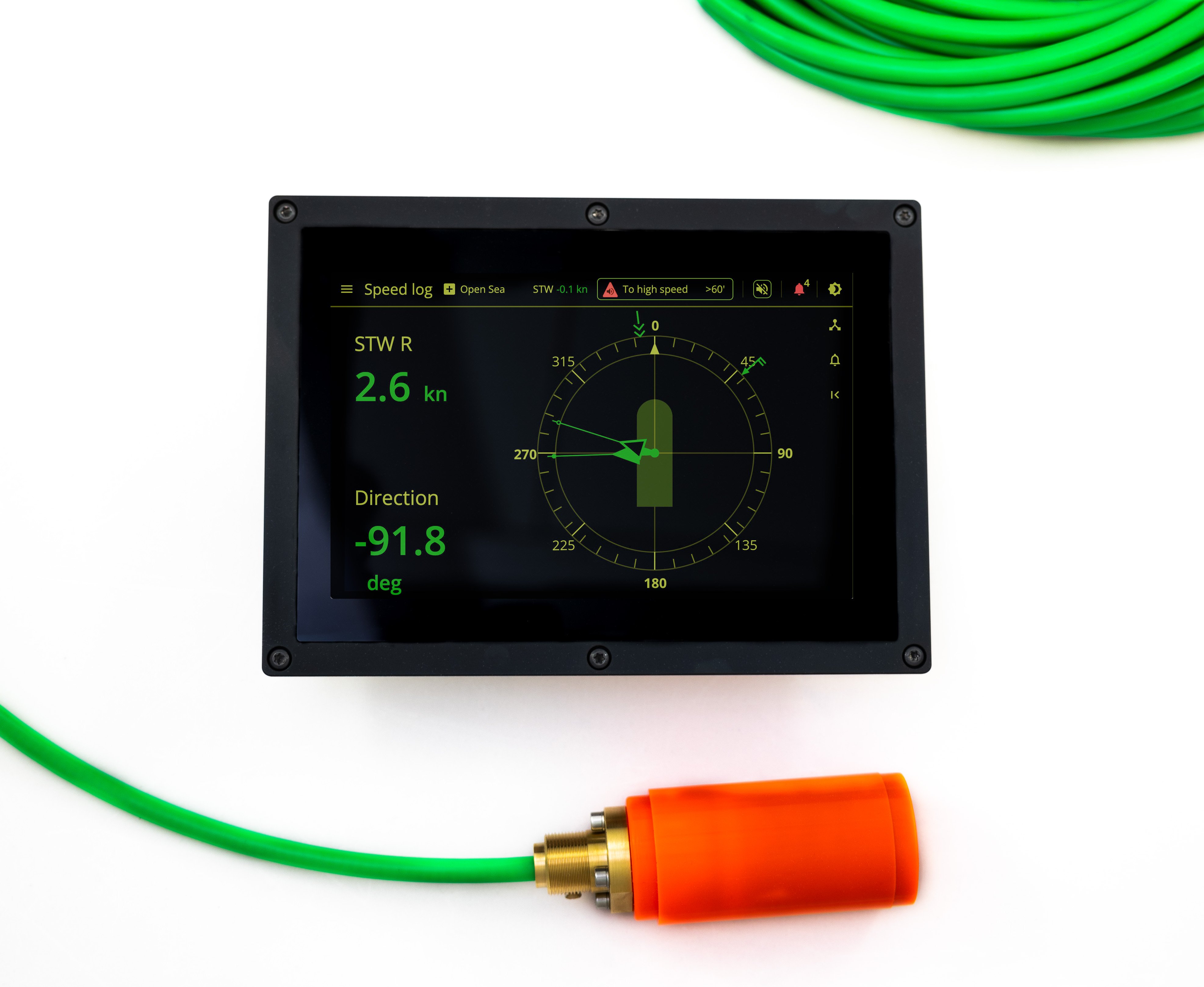

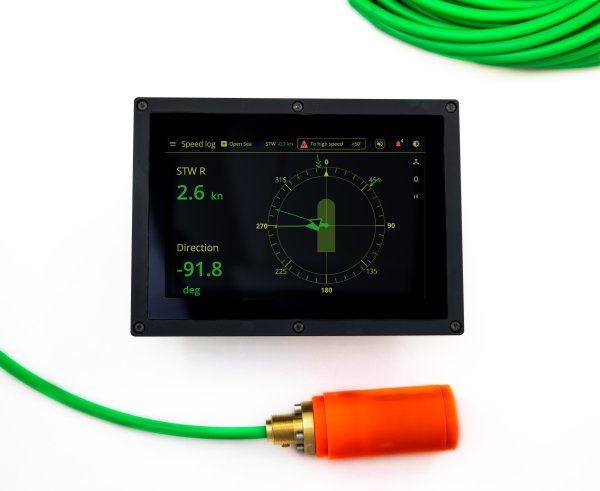

The SKIPPER EML1100 is a single axis speed log providing the Ship's speed in the longitudinal axis. The SKIPPER EML1200 is a dual axis speed log providing the Ship's speed in longitudinal and transversal axis.

Both working on the electromagnetic principle. Both speed logs provide Speed Through Water (STW). EML1100/EML1200 gives accurate navigation parameters, measured as they happen, and presented in a logical, user friendly way.

Read product description

Speed Log:	EML1100	EML1200

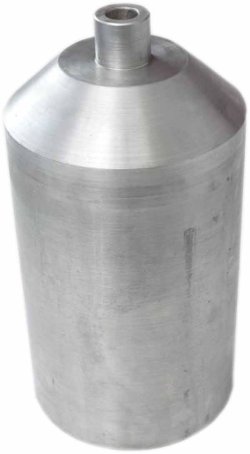

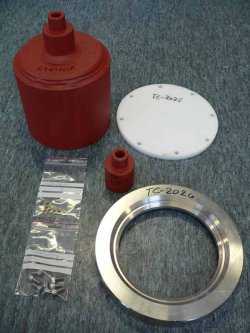

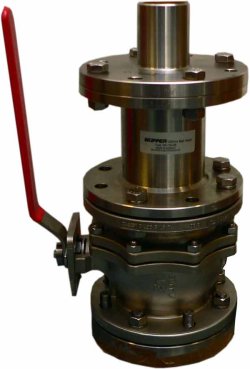

Speed Log: EML1100 EML1200 Number of Axis: 1 2 Speed range longitudinal: +/- 40 knots +/- 40 knots Speed range transversal: N/A +/- 40 knots Water track (from): 0 meter Temperature accuracy error: <1 ° C <1 ° C Power Supply: 2xDC: 24 V, auto switch over Power supply JB40 24VDC or 110-240VAC 2xDC: 24 V, auto switch over Power supply JB40 24VDC or 110-240VAC Power Consumption: Max 30 W Max 30 W Display: 10" Graphical Touch display 10" Graphical Touch display Display dimensions: Front plate: 287mm x 209,5 mm 287mm x 209,5 mm Depth: 65 mm 65 mm Weight: 2 kgs 2 kgs Mounting options: 60 mm Sea Valve for single bottom 60 mm Sea Valve for double bottom Steel Tank Aluminium tank 100 mm Sea Valve for single bottom 100 mm Sea Valve for double bottom Simrad NL-log retrofit Sagem/Safran retrofit Naviknot SRD331 retrofit PCSV60 retrofit Speed alarms: High and low speed limits Power failure Sensor failure Outputs: 2 x LAN 2 independent LAN ports (IEC61162-450/460) 2x NMEA 0183 outputs (IEC61162-1) 1xcontact closure (pulse) Alarm (relay) Inputs: 2 x LAN 2 independent LAN ports (IEC61162-450/460) 2 x NMEA 0183 inputs (IEC61162-1) External Dimming (DDC) NMEA Outputs: Speed: VBW and VHW Distance: VLW Others: MTW (Temperature) Classification: IMO Wheelmarked CCS on request RMRS on request. MED-B Service: Available in most major harbours, world-wide through extensive dealer network Downloads: Product Brochure Operation and Installation Manual Certificates Additional Installation Documents One full system consist of: Graphical display: EML1200-SA 10.1" Dual Axis Electromagnetic Log Control Unit EML1100-SA 10.1" Single Axis Electromagnetic Log Control Unit Sensor options: EML224SG-SD for 60 mm Sea Valve EML224ST-SD for Steel Tank EML224STA-SD for Aluminium Tank EML224SDB-SD for 100 mm Sea Valve EML224SN-SD for Simrad NL-Log retrofit EML224SS-SD for Sagem/Safran retrofit EML224SV-SD for Naviknot SRD331 retrofit EML224SX-SD for PCSV60 retrofit Electronic Unit: JB40POW-SA Bottom housings: SB-60-SA Sea Valve for single bottom SB-60-SA-M-KIT Mounting kit for SB-60-SA DB-60-SA Sea Valve for double bottom DB-60-SA-M-KIT Mounting kit for DB-60-SA ETNSTCL Steel Tank ETNALC Aluminium Tank

Features
