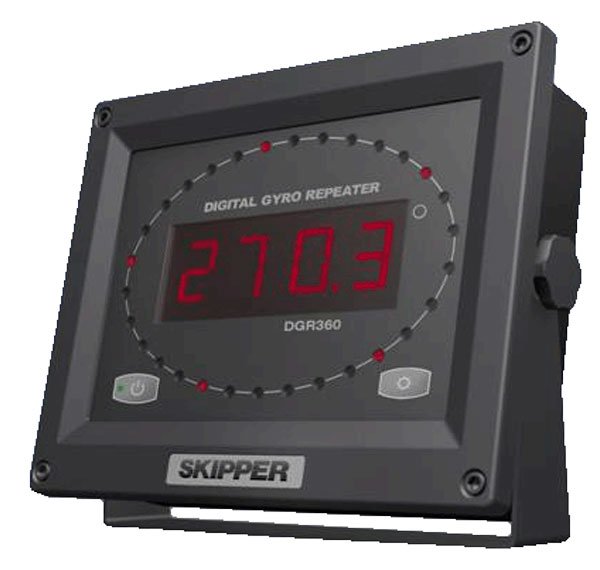

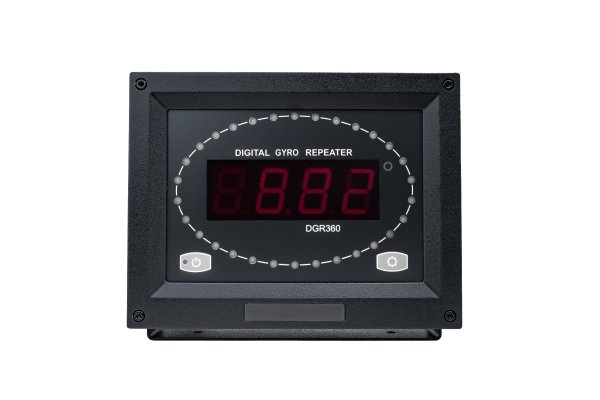

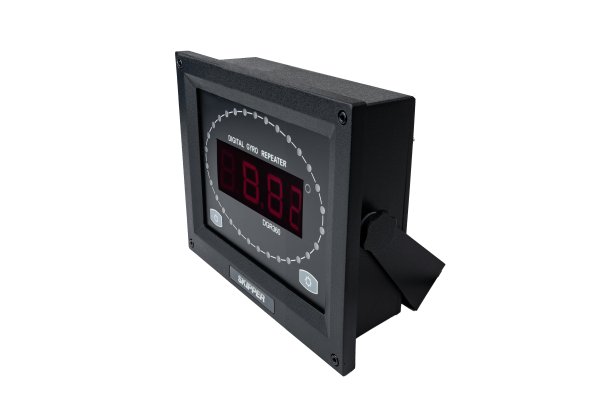

SKIPPER DGR360 Digital Gyro Repeater
Part Number: DGR360-SA
DGR 360 is a digital gyro repeater that displays the Heading Angle in the LED segment display and indicates the Direction of Turn with 30 dual-color surrounding LED’s, changing from green to red colour depending on the direction of turn.
Specifications: Part number: DGR360-SA Power supply: DC: 20-32 V Power consumption: 2 W at 24 VDC Display: 1 line with 7 segments 30x20 mm Display output: Heading (HDT, THS) from gyro compass or other HDT/THS devices Analogue indication of turn direction speed (red/green LEDs) Standard cable length: 2 m Compass safe distance: 65 cm Cut-out dimensions: 190x158 mm. Bracket or panel mounting Front plate: 220x170 mm Weight: 2 kgs IP rating: 56 Output: NMEA0183 Inputs: NMEA0183 protocols. Sentence: $-HDT, $-THS Remote dimmer input, pulse Classification: IEC 60945/2002 Service: Available in most major harbours, world-wide through extensive dealer network Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents
Features
- Heading Angle
- Visual indication of rotation speed
- HDT/THS/HDM signals
- Bracket or panel mounting
