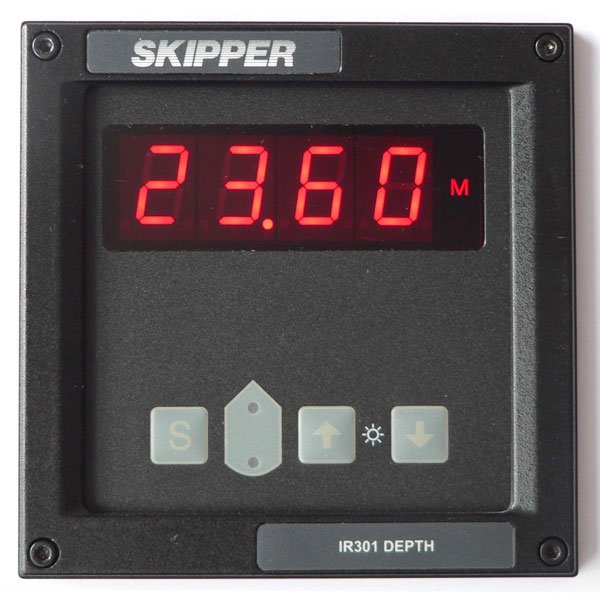

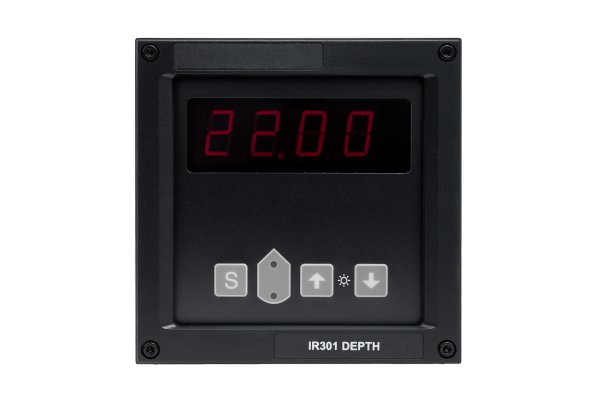

SKIPPER IR301 Digital Depth Repeater
Part Number: ENIR301-SA
The SKIPPER IR 301 is a remote depth repater using NMEA0183 signals. It gives accurate digital depth indication based on signals from the SKIPPER Echo Sounders. SKIPPER IR 301 can also be used with Echo Sounders from other manufacturers, when these have NMEA 0183 output.
Specifications: Part number: ENIR301-SA Power supply: DC: 10-40 V Power consumption: 3 W at 24 VDC Display: 7 segments 20x11 mm digital readout Cut-out dimensions: 124x124 mm. Bracket or panel mounting Front plate: 144x144 mm Depth: 59 mm Weight: 1 kgs IP Rating: 56 Output: NMEA0183 Inputs: NMEA 0183 protocols. Sentence: $-HDT, $-THS Remote dimmer input, pulse Classifications: Made according to IMO performance standard IEC 60945/2002 Service: Available in most major harbours, world-wide through extensive dealer network Downloads: Product Brochure Operation and Installation Manuals Product Certificates Additional Installation Documents
Features
- Depth Repeater
- Alarms
- Shows position of transducer in use

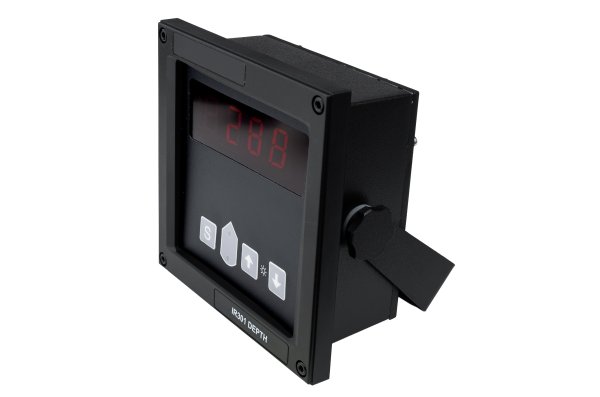

- Bracket or panel mounting
