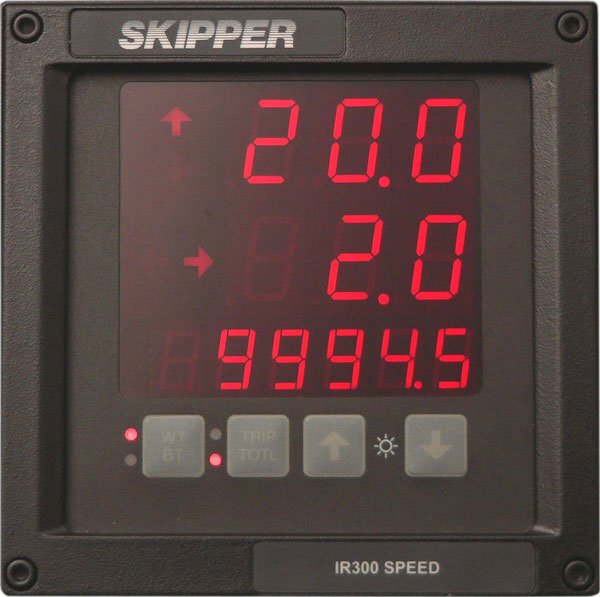

SKIPPER IR300 digital speed repeater

Part Number: ENIR300PD

The SKIPPER IR300 is a remote speed repeater for NMEA0183 signals. It is designed for use with SKIPPER speed logs. It may also be used with speed logs from other manufacturers, when these have an NMEA 0183 output.

Read product description

Features

Speed repeater
Alarms - speed alarm
Trip counter
Distance counter
One, two or three axis indication

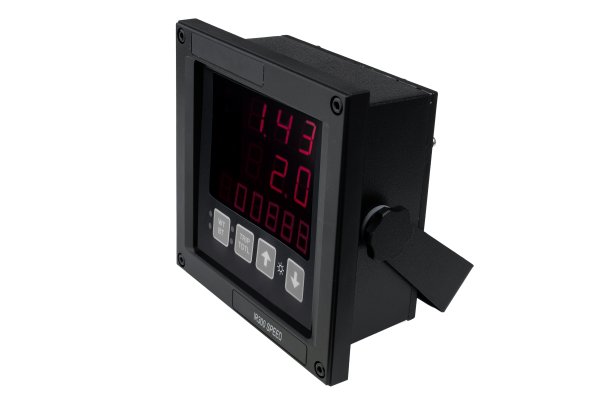

Bracket or panel mounting

Part number:	ENIR300PDR-SA Reversed IR300 Repeater ENIR300PD-SA Standard IR300 Repeater
Power supply:	DC: 10-40 V
Power consumption:	3 W at 24 VDC
Display:	2 lines with 7 segments 20x11 mm 1 line with 7 segments 20x11 mm
Display output:	Speed over ground: longitudinal, transversal fore, transversal aft (Docking) Speed through water: longitudinal, transversal fore, transversal aft (Docking) Distance travelled through water and over ground: trip and total
Cut-out dimensions:	124x124 mm. bracket or panel mounting. Brackets included.
Front plate:	144x144 mm to DIN standard
Depth:	59 mm
Weight:	1 kgs
IP rating:	56

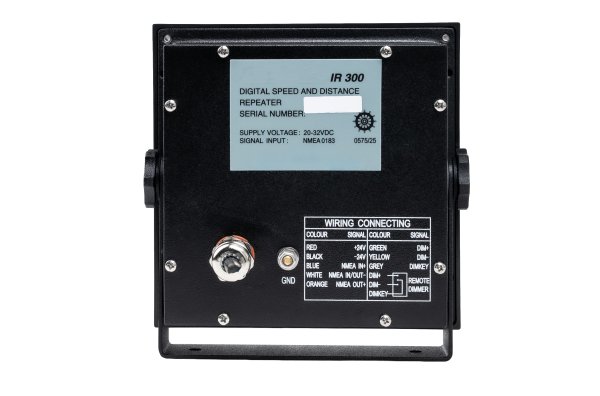

Inputs:	NMEA 0183 protocols. Sentence: $-HDT, $-THS Remote dimmer input, pulse Speed: VBW, VTG, VHW Distance: VLW
Classifications:	Made according to IMO performance standard IEC 60945/2002
Service:	Available in most major harbours, world-wide through extensive dealer network

Documentation type

Date

Type

Name

Size

Download

02.07.26

--

Brochure_ENIR300PD-SA (21082012)

483 KB

36ea5bc6c5414ee3d34be7edb53e3763 (1)
