SKIPPER EML224 COMPACT
Part Number: EML124 Compact

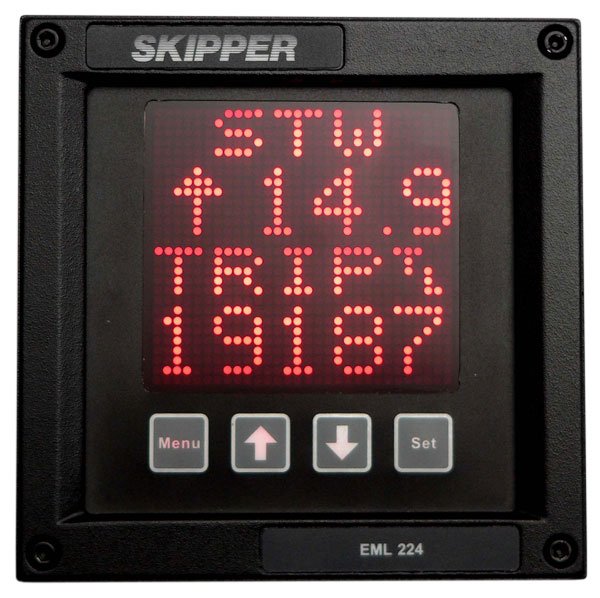

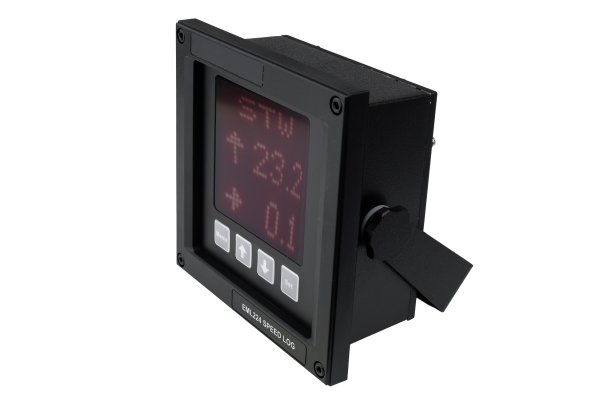

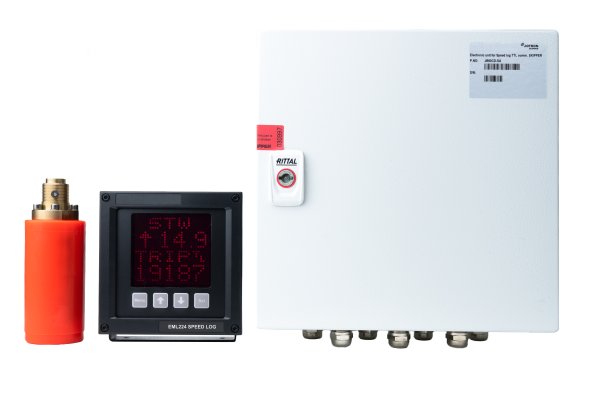

The SKIPPER Compact
EML224 is a single or dual axis speed log, working on the electromagnetic
principle, providing longitudinal and transversal ship’s speed relative to sea
water. The Compact EML224 gives accurate navigation parameters, measured as
they happen, and presented in a logical, user friendly way.
Specifications: Speed Log: EML124 Compact EML224 Compact Number of Axis: 1 2 Speed range longitudinal: +/- 40 knots +/- 40 knots Speed range transversal: N/A +/- 40 knots Water track (from): 0 meter Temperature accuracy error: <1 ° C <1 ° C Power Supply: AC:115-230 V 50/60 Hz DC: 20-32 V, auto switch over AC:115-230 V 50/60 Hz DC: 20-32 V, auto switch over Power Consumption: Max 30 W Max 30 W Display: 28x30 pixle alphanumeric LEDs (red) with dimming 28x30 pixle alphanumeric LEDs (red) with dimming Mounting dimensions display: 124x124 mm. Bracket or panel mounting 124x124 mm. Bracket or panel mounting Front plate: 144x144 mm 144x144 mm Depth: 59 mm 59 mm Weight: 1 kgs 1 kgs Standard cable length: 10 m (max 20 m) 10 m (max 20 m) Mounting options: 60 mm Sea Valve for single bottom 60 mm Sea Valve for double bottom Steel Tank Aluminium tank 100 mm Sea Valve for single bottom 100 mm Sea Valve for double bottom Simrad NL-log retrofit Sagem/Safran retrofit Naviknot SRD331 retrofit PCSV60 retrofit Speed alarms: High and low speed limits Power failure Sensor failure Outputs: 2xNMEA 0183 1xcontact closure (pulse) Alarm (relay) Fitness Inputs: 1xNMEA 0183 (OPTO isolated) External dimming (pulse) NMEA Outputs: Speed: VBW and VHW Distance: VLW Others: MTW (Temperature) Classification: IMO Wheelmarked CCS on request RMRS on request. MED-B Service: Available in most major harbours, world-wide through extensive dealer network Downloads: Product Brochure Operation and Installation Manual Certificates Additional Installation Documents One full system consist of: Compact Display options: CD401E1-SB for Single Axis option CD401E2-SB for Dual Axis option CD401EB-SB for Backwards option Sensor options: EML224SG-SD for 60 mm Sea Valve EML224ST-SD for Steel Tank EML224STA-SD for Aluminium Tank EML224SDB-SD for 100 mm Sea Valve EML224SN-SD for Simrad NL-Log retrofit EML224SS-SD for Sagem/Safran retrofit EML224SV-SD for Naviknot SRD331 retrofit EML224SX-SD for PCSV60 retrofit Electronic Unit: JB60CD-SA Bottom housings: SB-60-SA Sea Valve for single bottom DB-60-SA Sea Valve for double bottom ETNSTCL Steel Tank ETNALC Aluminium Tank
Features
- IMO Wheelmarked with MED-B
- Water speed log in single or dual axis (STW)
- Compact Display 144x144 mm
- Sea Temperature readout from sensor
- NMEA 0183 and Analog pulses output
- 1 Programmable contact closure
- RMRS and CCS available on request
