SKIPPER DL1 single axis speed log

Part Number: DL1

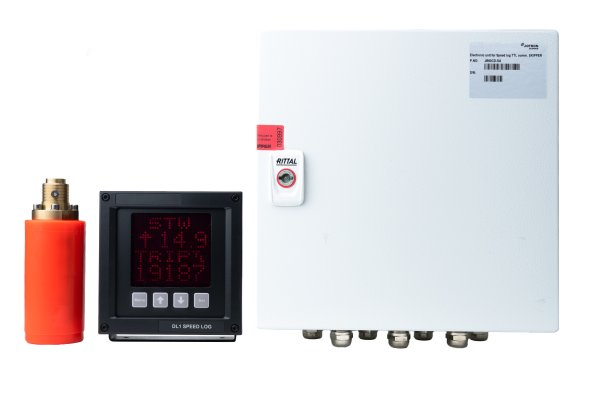

The SKIPPER DL1 is a single axis speed log, working on the Doppler principle, providing longitudinal ship’s speed (STW) and distance relative to sea water. The SKIPPER DL1 gives accurate navigation parameters, measured as they happen, and presented in a logical, user friendly way.

Read product description

Where to buy

Features

IMO Wheelmarked with MED-B
Doppler water speed log in single axis (STW)

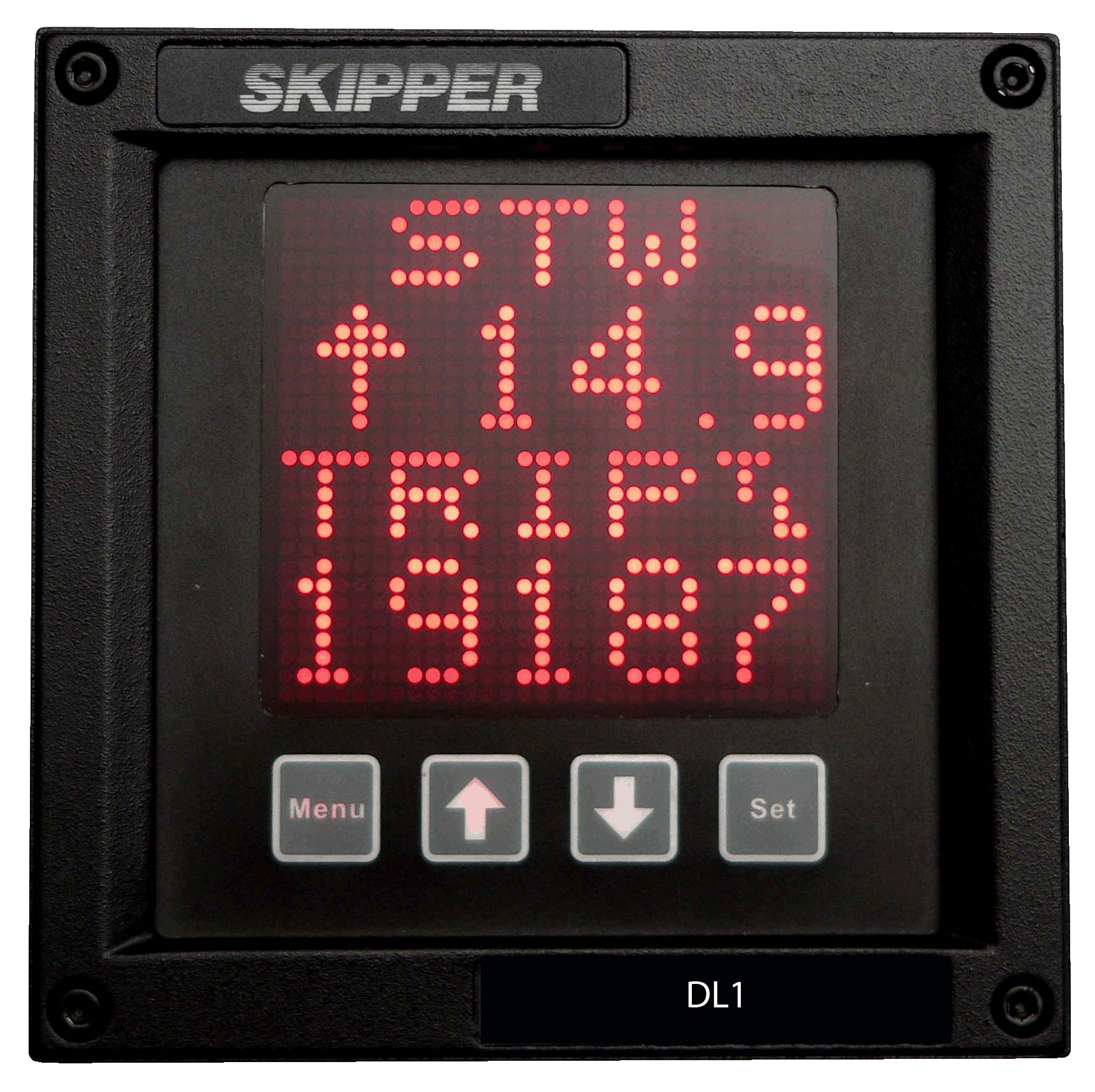

Compact display 144x144 mm
Sea temperature readout from sensor
NMEA 0183 and Analog pulses output
3 userfriendly programmable displays and integrated menus
RMRS and CCS available on request
Fully automatic settings

Speed log	SKIPPER DL1
Number of axis	1
Speed range longitudinal	+/- 50 knots
Water track (from)	3 meter
Temperature accuracy error	<1°C
Primary frequency	715 kHz
Power supply	• AC:115-230 V 50/60 Hz • DC: 20-32 V, auto switch over
Power consumption	Max 30 W
Display	28x30 pixle alphanumeric LEDs (red) with dimming

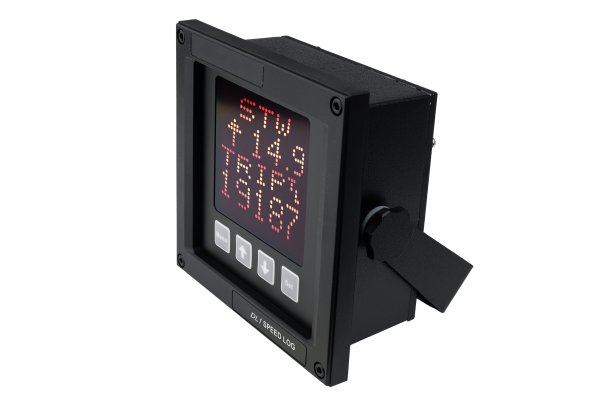

Mounting dimensions display	124x124 mm. Bracket or panel mounting
Front plate	144x144 mm
Depth	59 mm
Weight	1 kgs
Standard cable length for sensor	40 m
Mounting options	• 60 mm sea valve for single bottom • 60 mm sea valve for double bottom • Steel Tank • Aluminium tank • 100 mm sea valve for single bottom • 100 mm sea valve for double bottom • PCSV60 retrofit • Simrad NL retrofit • Sagem retrofit • Naviknot 5005 retrofit
Speed alarms	• High and low speed limits • Power failure • Sensor failure
Clock	Year-month-day/Hour-min. (taken from GPS if available)
Outputs	• 2 x NMEA 0183 • 2 x contact closure (pulse) • Alarm (relay)
Inputs	• 1 x NMEA 0183 (OPTO isolated) • External dimming (pulse)
NMEA outputs	• Speed: VBW and VHW • Distance: VLW • Others: MTW (Temperature)
Accessories	• ENIR300-SA Speed repeater • IR31DIM-SA Dimming control • CD401MR-SA Multi repeater
Classification	• IMO Wheelmarked • CCS on request • RMRS on request • MED-B
IP rating	Electronic unit: 22 Display: 22 Sensor: IPX7
Service	Available in most major harbours, world-wide through extensive dealer network
