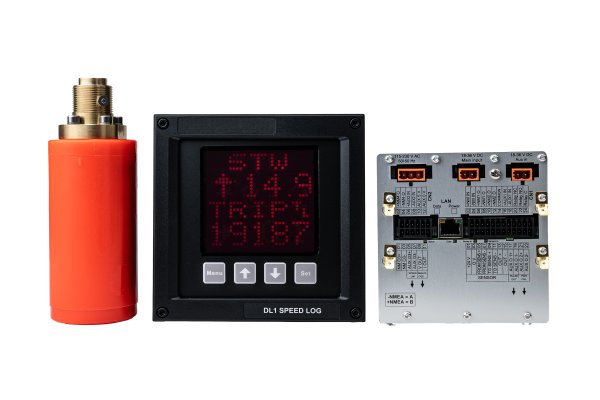

SKIPPER DL1 Multi - single axis speed log

Part Number: DL1 Multi

The SKIPPER DL1 Multi is a single axis speed log, working on the Doppler principle, providing longitudinal ship’s speed (STW) and distance relative to sea water. The SKIPPER DL1 Multi gives accurate navigation parameters measured as they happen and presented in a logical, user friendly way.

Read product description

Where to buy

Features

IMO Wheelmarked with MED-B
Water doppler speed log in single axis (STW)

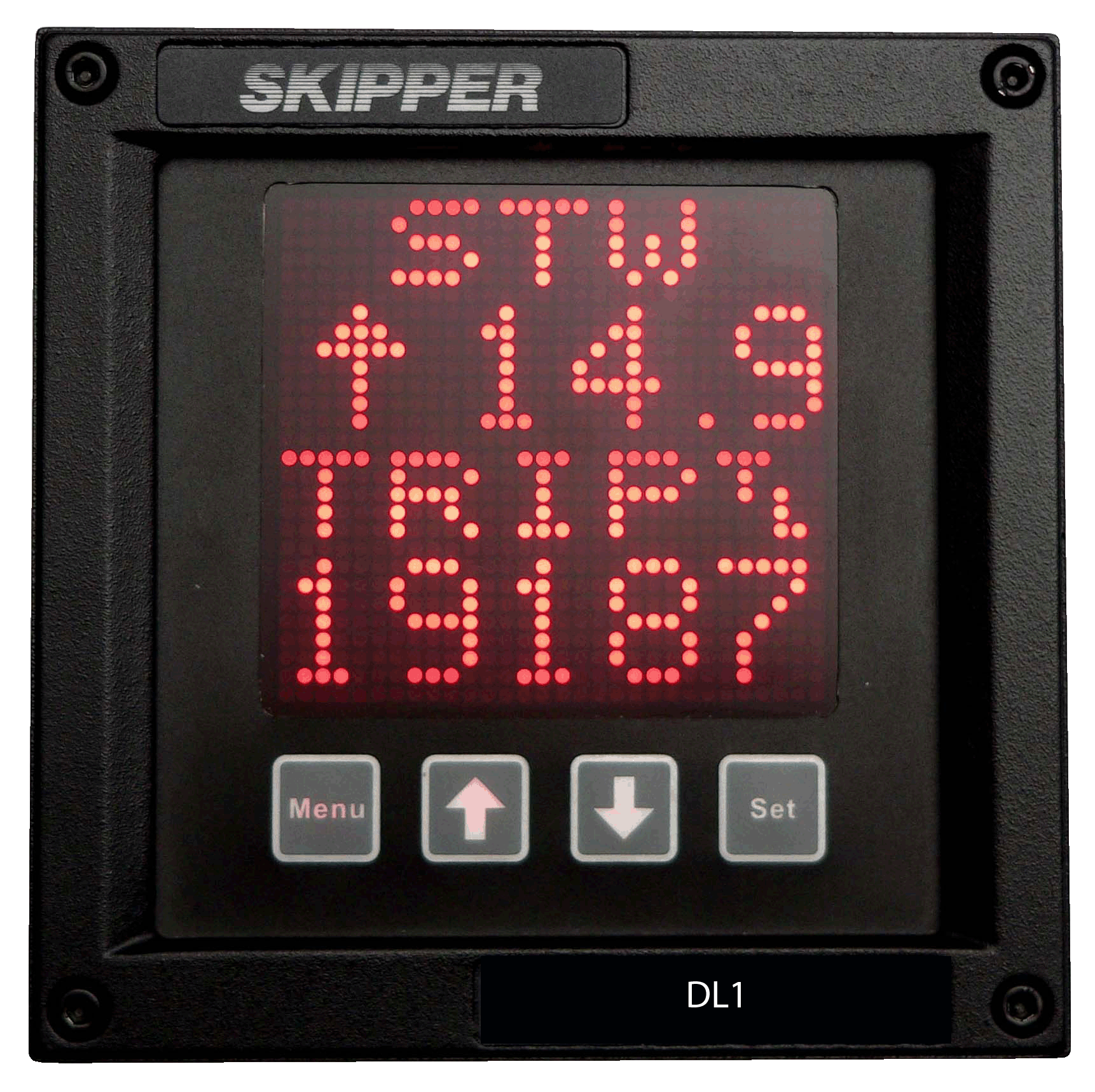

Compact display 144x144 mm
Sea temperature readout from sensor
LAN and NMEA 0183 and analog pulses output
Fully automatic settings
RMRS and CCS available on request

Speed log	DL1 Multi
Number of axis	1
Speed range longitudinal	+/- 50 knots
Speed range transversal	N/A
Water track (from)	2 meter
Temperature accuracy error	<1°C
Primary frequency	715 kHz

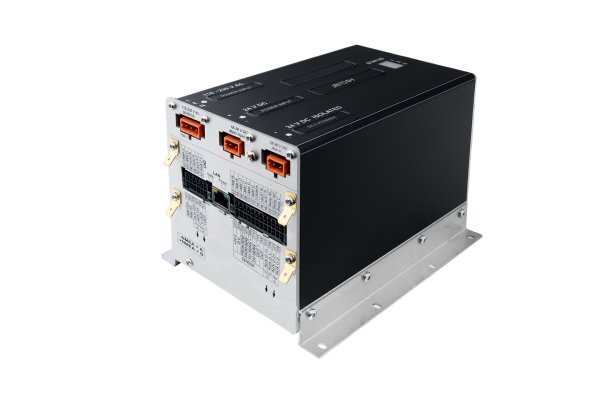

Power supply	• For Electronic unit (JB70D1-XX): AC: 115-230 V 50/60 Hz • For Electronic unit (JB70D1-XX): DC: 24 V • For Display (CD402CU-XX): DC: 24 V
Power consumption	Max 30 W for complete speed log
Display	28x30 pixle alphanumeric LEDs (red) with dimming

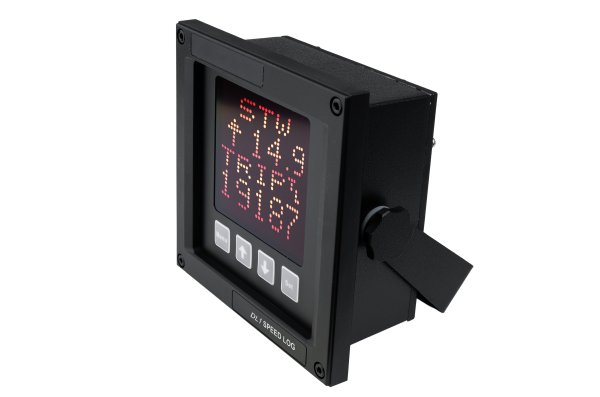

Mounting dimensions display	124x124 mm. bracket or panel mounting
Front plate	144x144 mm
Depth	59 mm
Weight	• 1 kgs for display • 2,5 kgs for electronic unit • 10 kgs for sensor with 40 m cable
Standard cable length	None for display - pluggable (IP23), (max. 100 m)
Standard cable length for sensor	40 m
Mounting options	• 60 mm sea valve for single bottom • 60 mm sea valve for double bottom • Steel Tank • Aluminium tank • 100 mm sea valve for single bottom • 100 mm sea valve for double bottom • Retrofit for Simrad NL-Log • Retrofit for Sagem/Safran • Retrofit for Sperry Naviknot SRD331 • Retrofit for PCSV60
Speed alarms	• High and low speed limits • Power failure • Sensor failure
Clock	Year-month-day/Hour-min. (taken from GPS if available)
Outputs	• 1 x LAN (IEC61162-450) • 4 x NMEA 0183 (IEC61162-1/2) • 3 x Auxiliary opto isolated (pulse, speed etc.) • 1 x Contact closure (alarm etc.)
Inputs	• 1 x LAN (IEC61162-450) • 1xNMEA 0183 (IEC61162-1) • 2 x Auxiliary opto isolated (alarm)
NMEA outputs	• Speed: VBW and VHW • Distance: VLW • Others: MTW (Temperature) and ALR • Dimming DDC
Accepted NMEA formats	VTG, RMC, GGA and ACK
Accessories	• ENIR300-SA Speed repeater • IR31DIM-SA Dimming control • CD401MR-SA Multi repeater
Classification	• IMO Wheelmarked • CCS on request • RMRS on request • MED-B • IEC61023 • IEC60945 • IEC61162-1/2/450 • IEC622
IP rating	Electronic unit: 22 Display: 22 Sensor: IPX7
Service	Available in most major harbours, world-wide through extensive dealer network
