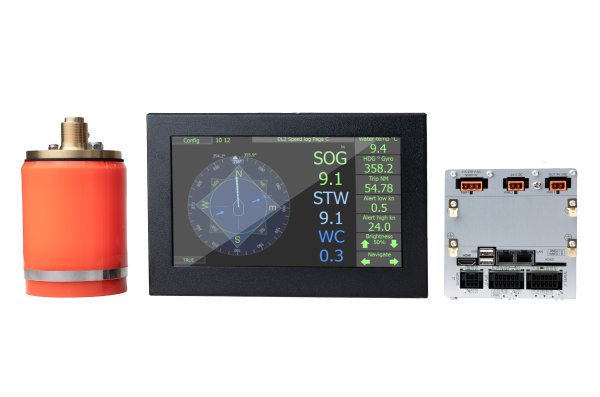

SKIPPER DL2 dual axis Doppler speed log

Part Number: DL2

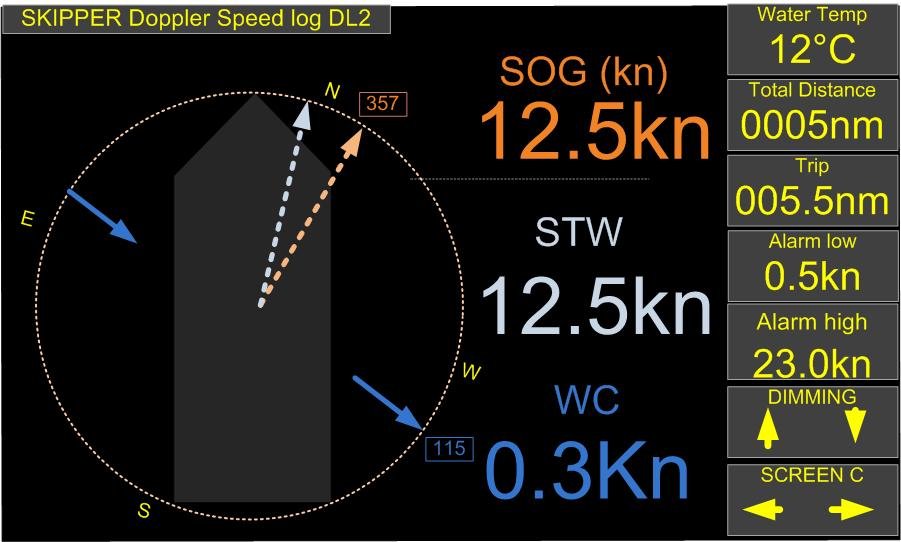

The SKIPPER DL2 is a dual axis doppler speed log, working on the doppler principle, providing longitudinal and transversal ship’s speed (STW and SOG) and distance relative to sea water. The SKIPPER DL2 gives accurate navigation parameters, measured as they happen, and presented in a logical, user friendly way.

Read product description

Where to buy

Features

IMO Wheelmarked with MED-B
Water speed log in dual axis (STW)
Ground speed in dual axis (SOG)
Docking functionality as standard (Three axis in STW and SOG)
Sea temperature readout from sensor
Touch display
RMRS and CCS available on request
LAN and NMEA0183 output
User friendly programmable displays and integrated menus
Fully automatic settings

Speed log	DL2
Number of axis	2 and 3
Speed range longitudinal	+/- 50 knots
Operating frequency	• 277 kHz SOG • 850-920 kHz STW primary • 264 kHz STW secondary
Trip total	999999.9 NM
Speed range transversal	+/-50 knots
Water track (from)	2 meter
Temperature accuracy error	<1°C
Power supply	• AC:115-230 V 50/60 Hz • DC: 24 V
Power consumption	Max 30 W for complete speed log

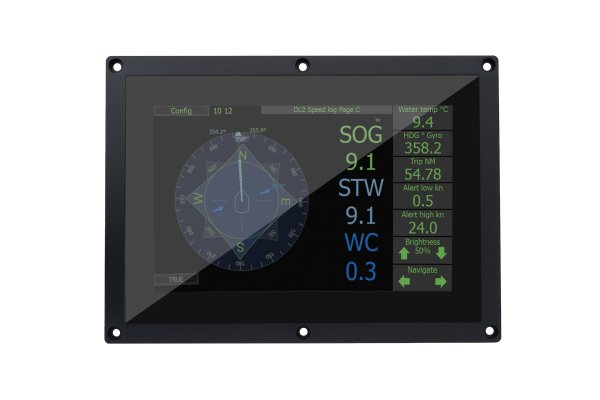

Display	9" touch
Mounting dimensions display	190x119x114 mm. Bracket or panel mounting
Accuracy (Better than)	0.2 knots or 2% whichever is greater
Accuracy	1% available as an option

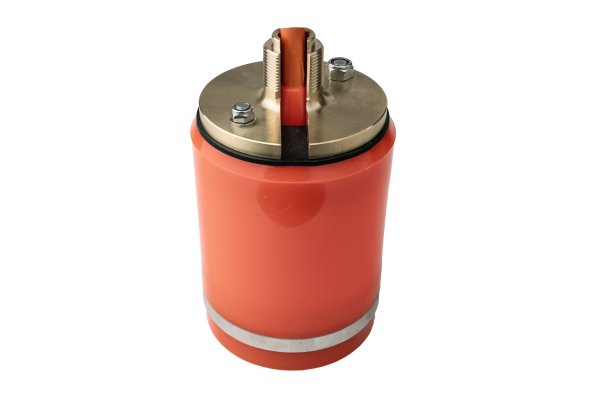

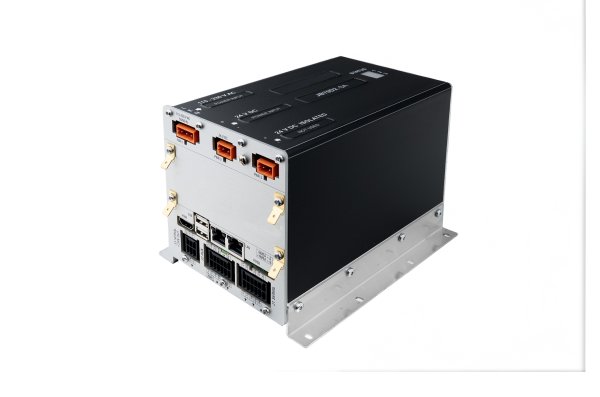

Weight	• 1.4 kgs for display • 1.5 kgs for electronic unit • 10 kgs for sensor and 40 m cable
Standard cable length	• None (max 100 m) for display • 40 m for sensor

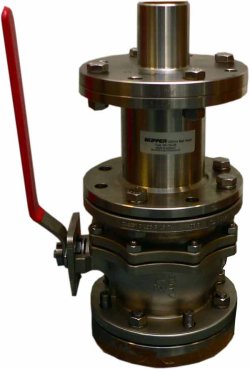

Mounting options	• Steel Tank • Aluminium tank • 100 mm Sea Valve for single bottom • 100 mm Sea Valve for double bottom • DL850 540 kHz retrofit in ETNSLB • Atlas Dolog 2x retrofit • Sperry SRD 421/500 retrofit • DS-630 in DS-661 for Furuno DS-60/50 retrofit
Speed alarms	• High and low speed limits • Power failure • Sensor failure
Clock	internal or From NMEA
Outputs	• 2 x LAN (IEC61162-450) • 4 x NMEA0183 (IEC61162-1) • 2 x Auxiliary (pulse, limit etc) • 1 x Relay (Alarm etc.)
Pulse output	Yes
Analogue output	Defalt no Optical 4-20 mA and 0-10V
Inputs	• 2 x LAN (IEC61162-450) • 2 x NMEA0183 (IEC61162-1) • 1 x Auxiliary (alarm, sync etc.)
NMEA outputs	• Speed: VBW and VHW • Distance: VLW • Others: MTW (Temperature)
Classification	• IMO Wheelmarked • CCS on request • RMRS on request • MED-B • IEC61023 • IEC60945 • IEC61162-1/2/450 • IEC62288 • Ready for IEC61924
IP rating	• IP 22 Control unit • IP 22 Electronic unit • IPX7 Sensor unit
Service	Available in most major harbours, world-wide through extensive dealer network
